Lifting height: 3-6 m
Max lifting capacity: 3500 kg
Min ground clearance: 250 mm

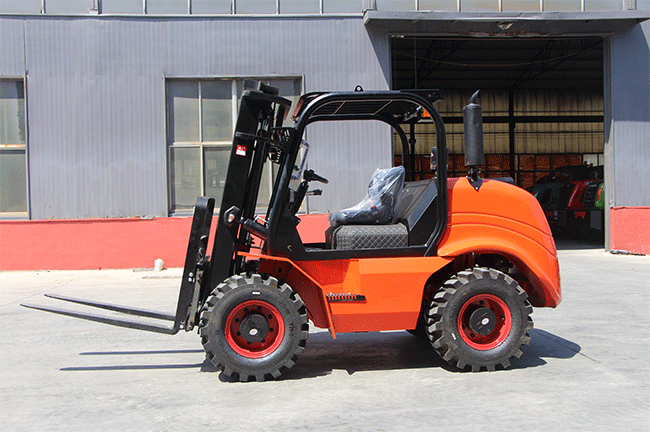

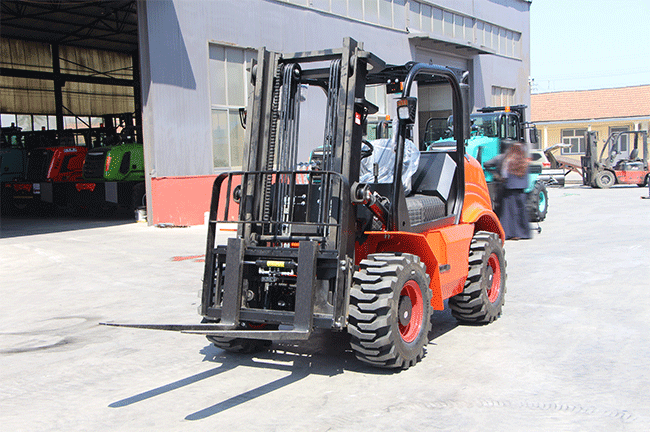

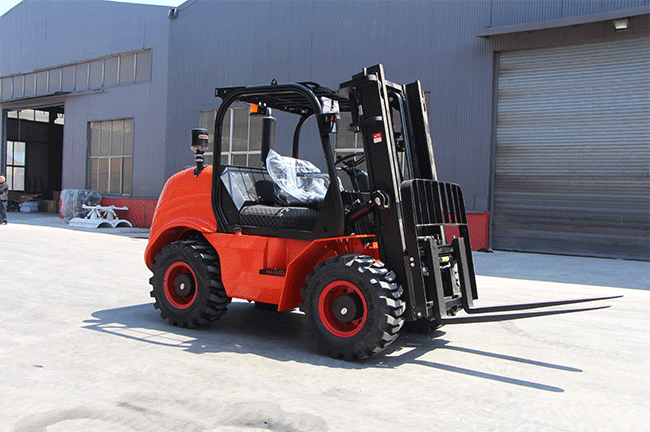

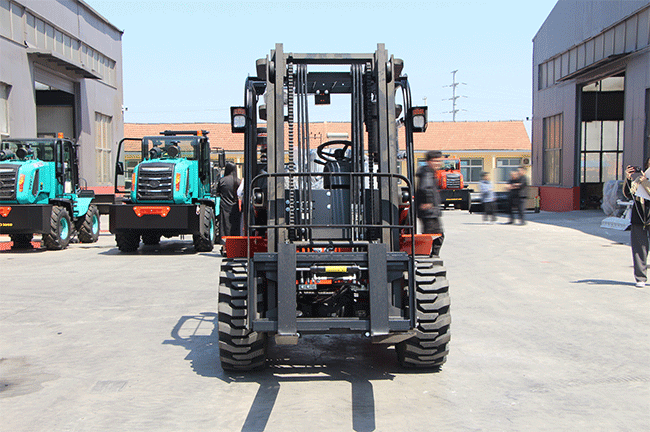

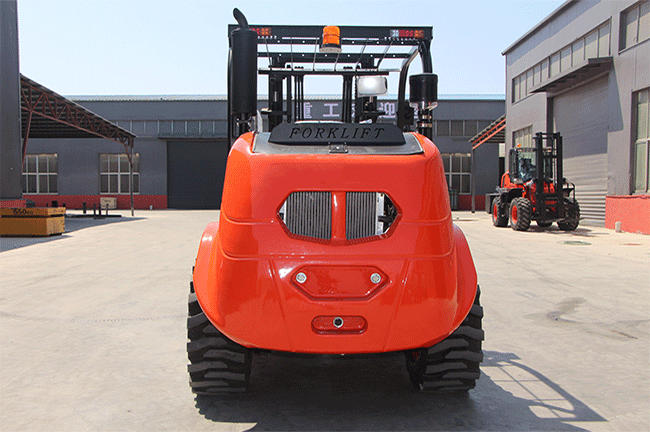

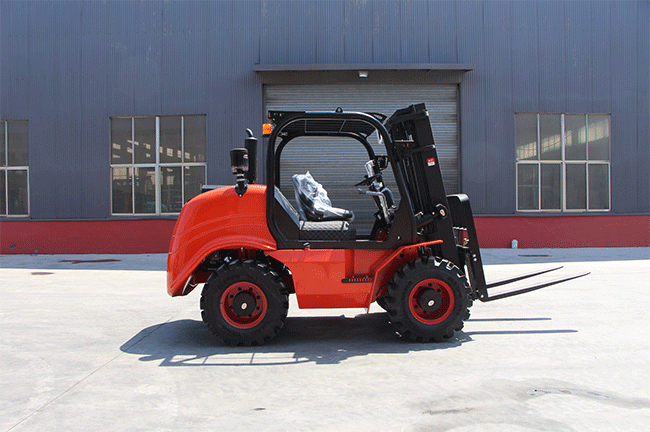

3500kg Compact Rough Terrain Forklift | 4WD Quanchai Euro IV Engine | 35km/h Fast Transit
JTYC35-3 all terrain forklift features compact body design combined with powerful off-road performance. Adopting Quanchai National IV diesel engine, four-wheel drive and heavy-duty body, it delivers 3.5-ton stable lifting and flexible maneuverability. Perfect for narrow outdoor sites, farms and construction yards, it meets high-efficiency material handling demands in limited and complex working spaces.
| Model | JTYC35-3 |
| Power System | Quanchai National IV 495 Diesel Engine |
| Rated Load | 3,500 kg |
| Lift Height | 3,000–6,000 mm customizable |
| Wheelbase | 1,697 mm flexible short wheelbase |
| Drive Mode | Four-wheel drive |
| Max Climbing Angle | Up to 38° |
| Travel Speed | 35 km/h high-speed transfer |
| Vehicle Weight | ≥ 5,600 kg heavy stable structure |
Ultra-small overall dimension saves working space, while retaining stable 3.5-ton lifting capacity. It works perfectly in narrow yards, limited construction sites and compact outdoor areas where large forklifts cannot operate freely.
Four-wheel drive system provides excellent traction on muddy roads, gravel ground and uneven terrain. 38° climbing ability ensures smooth crossing of slopes and rough surfaces, reliable for all-weather outdoor operation.
Wide lifting height option covers daily loading, container handling and high-level stacking. Customizable mast height adapts freely to various site layouts and storage requirements.
1697mm short wheelbase brings smaller turning radius, enabling flexible steering and precise positioning in tight working zones. It balances off-road performance and site flexibility perfectly.
35km/h top speed greatly improves cross-site transfer efficiency. Heavy body weight over 5600kg guarantees stable balance during full-load lifting and traveling, enhancing overall operation safety.
Equipped with Quanchai 495 National IV emission engine, featuring strong power, low fuel consumption and environmental compliance. Easy maintenance and wide fuel adaptability support long-term high-intensity outdoor jobs.
Factory direct supply with complete customization and export support. Contact us for price, engine options, shipping arrangement and lead time. Dealer cooperation and bulk orders are highly welcomed.
