JDT 539 Crawler Solar PV Pile Driver | 4000mm Tracked Pile Driving Rig with DTH & Auger Drilling for Solar Farm Foundation Construction

91kW Dual-Pump Hydraulic System | 1260J Impact Hammer | 30° Gradeability | 6-Ton 360° Rotating Photovoltaic Ground Screw Pile Driver

Overview

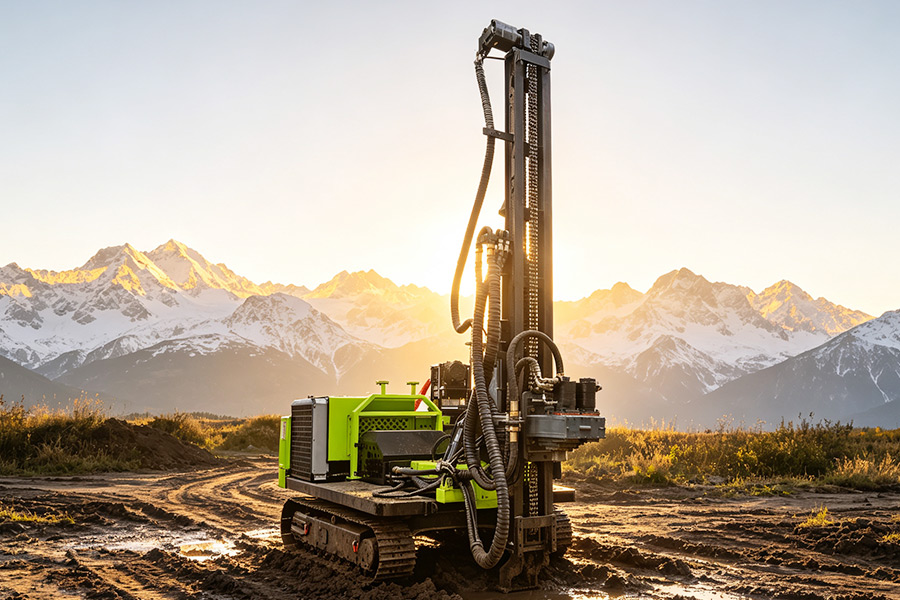

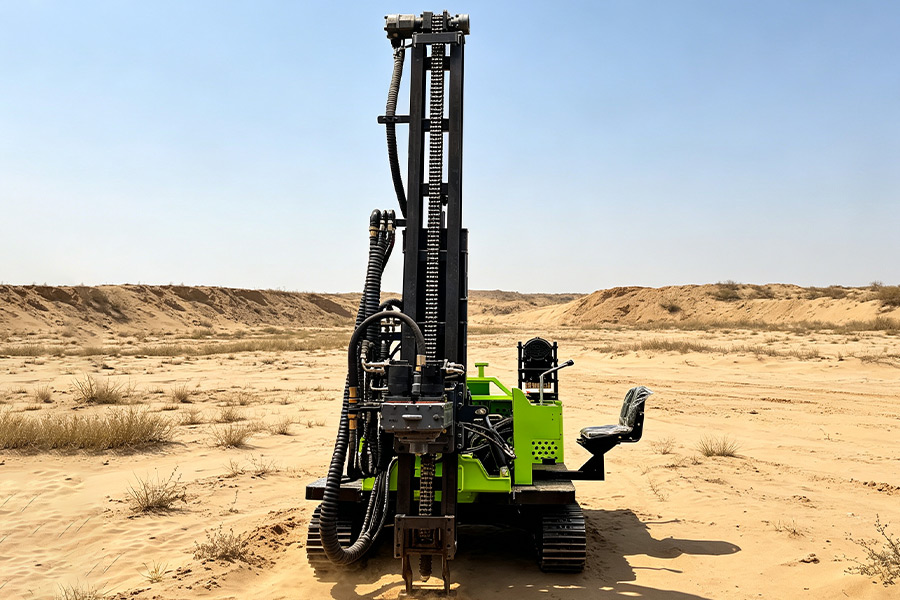

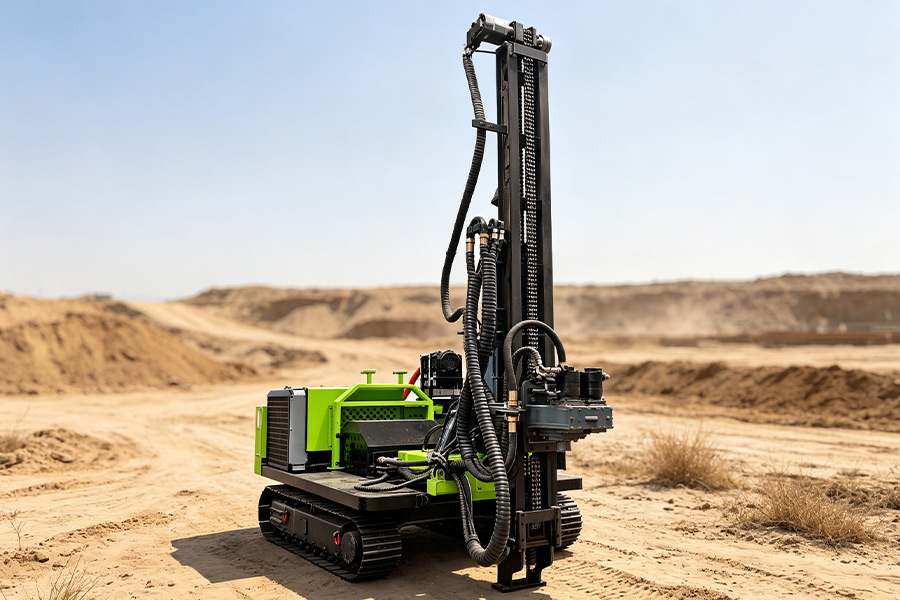

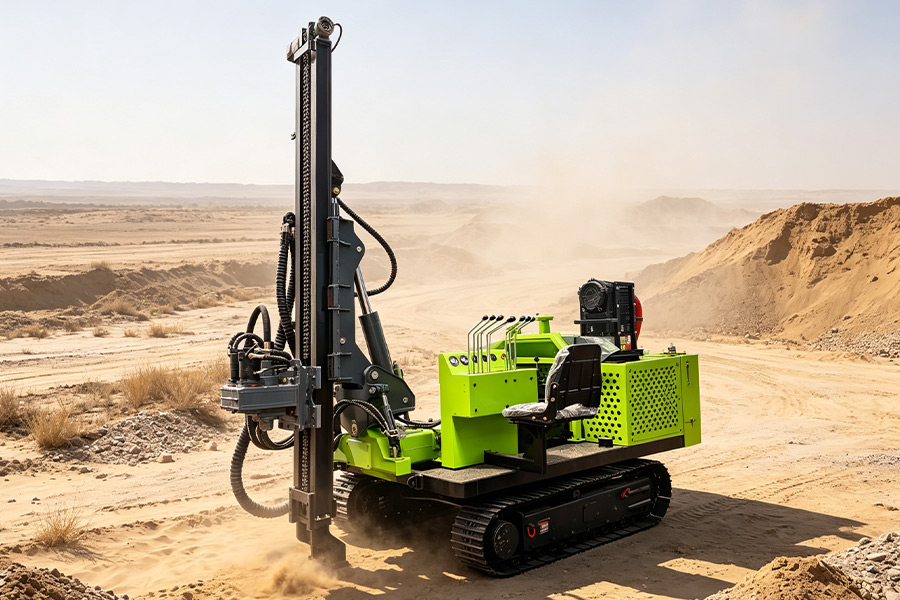

The JDT 539 is a professional crawler solar PV pile driver purpose-built for foundation installation in utility-scale and distributed photovoltaic projects. Integrating pile driving, pile pulling, ground screw installation, auger drilling and DTH drilling into a single rugged tracked platform, it adapts seamlessly to varied ground conditions from soft topsoil to weathered rock, delivering a one-stop foundation solution that reduces equipment investment and simplifies on-site workflow management.

Driven by a robust 91kW power unit matched with a high-performance dual-pump hydraulic system operating at 200 bar, this photovoltaic piling machine delivers consistent, high-torque power for smooth, efficient pile driving and drilling operations. Its heavy steel tracked undercarriage with 300mm wide track plates provides stable traction across sloped, uneven and soft ground, while the full 360° rotating working platform enables fast, accurate pile positioning without repositioning the entire machine. Engineered for all-day field operation with low energy consumption and low noise output, it directly cuts labor input, accelerates construction progress and lowers total project costs for solar EPC contractors and foundation engineering teams.

Basic Specifications

Core Value Advantages

1. 5-in-1 Multi-Function Capability for Full-Cycle Solar Foundation Works

This versatile solar piling rig integrates pile driving, pile extraction, ground screw installation, earth auger drilling and down-the-hole rock drilling into one compact tracked unit. It handles every stage of PV foundation construction across changing soil and rock conditions, eliminating the need to deploy multiple specialized machines on site. This all-in-one design reduces capital investment in equipment, cuts transport and mobilization costs, and streamlines crew management for solar construction projects of every scale.

2. High-Pressure Dual-Pump Hydraulics & 1260J Hammer for Productive Pile Installation

Powered by a 91kW industrial engine and a 200-bar dual-pump hydraulic system, this DTH pile driver delivers steady, heavy-duty power for continuous drilling and driving operations. The hydraulic hammer generates 1260J of single impact energy, driving steel piles and ground screws to full design depth quickly and uniformly with minimal strikes. The optimized hydraulic circuit ensures responsive control and reliable performance through long working shifts, significantly raising daily piling output and shortening overall project timelines.

3. 360° Rotating Platform & Tracked Chassis for Superior Terrain Flexibility

The heavy-duty rubber track undercarriage with 300mm wide track plates delivers excellent traction and low ground pressure, allowing the ground screw drilling rig to safely traverse 30° slopes, loose sand, muddy fields and rocky hillsides where wheeled rigs cannot operate. The full 360° rotating work platform lets operators align the drill mast in any direction without repositioning the base machine, dramatically speeding up pile layout work in dense solar array fields. It is an ideal choice for mountain solar farms, hillside PV projects and remote off-grid solar installations.

4. PV-Tailored Engineering Delivers Lower Operating Cost & Faster ROI

Designed exclusively for photovoltaic foundation construction, this crawler solar pile driver balances strong working performance with low energy consumption and low noise emission, making it suitable for both urban edge and rural project sites. Its fast working cycle reduces the number of workers required on site, directly cutting labor and fuel expenses. Faster foundation completion allows solar panel mounting to start earlier, compressing total project duration and improving profit margins for solar EPC and drilling contractors.

5. Heavy-Duty Field Construction with Customization & Comprehensive After-Sales Support

Built with a reinforced all-steel frame and fully protected hydraulic lines, this auger pile drilling rig is engineered to withstand daily heavy use in harsh outdoor construction environments. Easily accessible service points simplify routine maintenance, keeping scheduled downtime to a minimum. We offer full customization options to match your specific project requirements, backed by professional after-sales service, complete technical documentation and readily available spare parts. It is a durable, reliable workhorse that delivers consistent long-term return on investment.

Get a Quote

Factory direct supply with competitive bulk pricing, custom configuration support and full technical service for solar EPC contractors, foundation drilling companies and regional equipment distributors worldwide. Contact us today for a detailed quotation and a tailored solar piling solution matched to your project scale, site geology and operational requirements.
