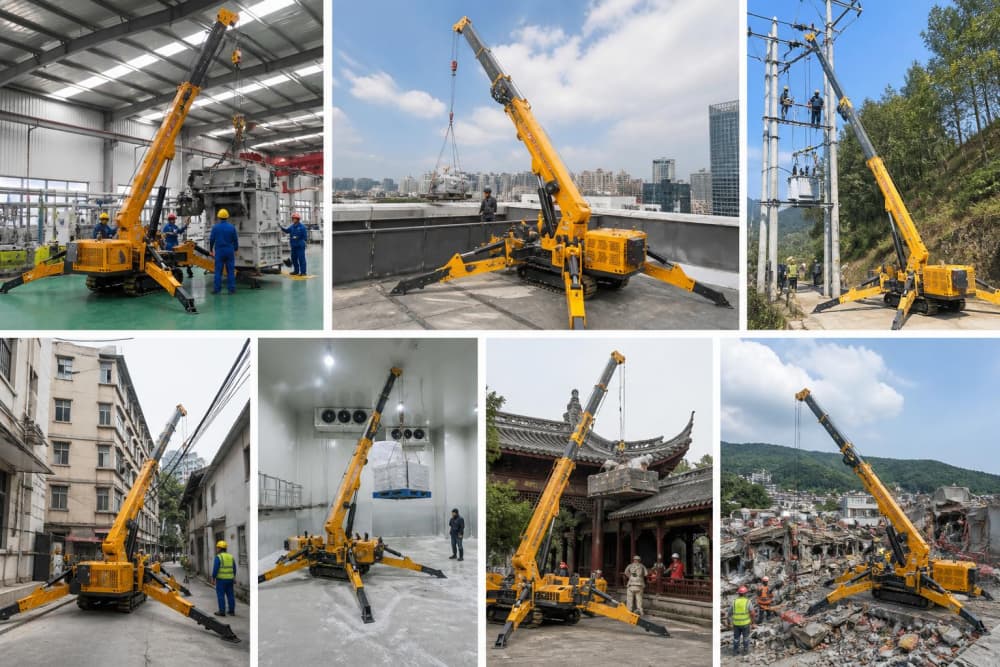

The JTZD‑1.5T crawler spider crane is the most miniaturized unit in our entire product lineup, engineered for ultra‑narrow spaces and uneven sloped terrain. Featuring 1.5‑ton rated lifting capacity, 6.5‑meter maximum lifting height, 6‑meter safe operating radius, 4‑section telescopic boom and 25° climbing capacity, it delivers steady performance for indoor equipment installation, light‑duty maintenance and small‑scale narrow‑site lifting tasks.

The ultra‑compact 0.6‑meter‑width body is the narrowest among all JTZD series models, enabling passage through tiny doorways, ultra‑narrow indoor corridors and confined work zones that are inaccessible to other lifting equipment.

The 4‑section telescopic boom extends to full 6.5m height within 20 seconds, and its angle adjusts from 0° to 78° in just 13 seconds, supporting fast on‑site positioning and shortening operation cycles for frequent small‑scale lifting tasks.

With 25° climbing capacity (36% gradeability), it can freely travel and operate on uneven ground and sloped job sites. Its lightweight 1.3‑ton operating weight ensures flexible movement while maintaining stable lifting performance for off‑road light‑duty operations.
