JTZD-8T Spider Crane

Self weight: 8.7 T

Dimensions: 6.15 * 1.6 * 2.25 m

Max operating radius: 18 m

Request a Quote jutop_zeus@jutopmach.cn 8619005374525

Product Introduce

JTZD‑8T 8‑Ton Compact Crawler Spider Crane | 21m Max Lifting Height

8‑Ton Rated Lifting Capacity | 21m Max Vertical Height | 18m Safe Operating Radius | 1.6m Ultra‑Narrow Chassis | Dual Diesel/AC380V Power System

Overview ▾

The JTZD‑8T crawler spider crane delivers steady medium‑heavy lifting performance for confined‑space construction sites. Featuring 8‑ton rated lifting capacity, 21‑meter maximum lifting height, 18‑meter safe operating radius and dual‑mode Diesel/AC380V power system, it balances solid lifting performance and compact footprint, suited for equipment positioning and structural installation on complex‑terrain work zones.

Applications

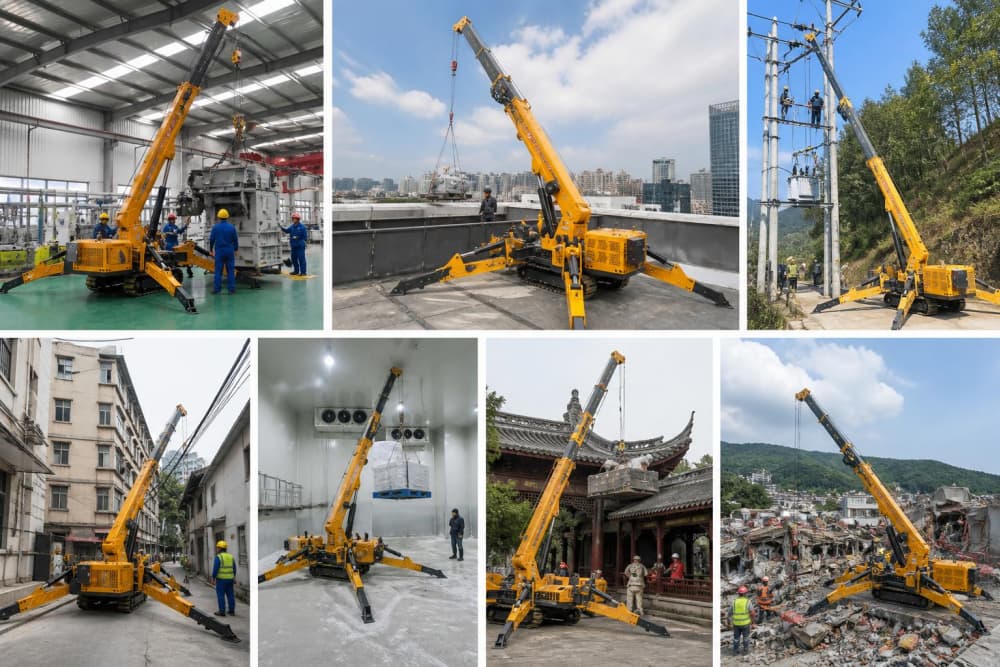

JTZD‑8T 8‑ton crawler spider crane with CE certification for indoor structural erection & equipment positioning

Key Specifications

Model	JTZD‑8T
Rated Lifting Capacity	8 t
Max Vertical Lifting Height	21 m
Max Safe Operating Radius	18 m
Power System	Dual‑Mode Diesel / AC380V Electric Power
Telescopic Boom Range	5.5‑21 m \| Full Extension in 54s
Overall Transport Dimensions (L×W×H)	6150 × 1600 × 2250 mm
Operating Weight	6.2 t
Transport‑Mode Width	1600 mm
Outrigger Span	3600 × 3600 mm
Global Certifications	CE · ISO 9001

Key Advantages

1. 1.6m Ultra‑Narrow Chassis — Access to Tight Confined Work Zones ▾

The ultra‑slim 1.6‑meter width chassis enables passage through narrow walkways, indoor corridors and restricted‑access construction areas, spaces inaccessible to standard‑size mobile cranes.

2. Rapid Telescopic Boom — Optimized for Multi‑Height Lifting Tasks ▾

The 5‑section telescopic boom extends from 5.5m to full 21m height within 54 seconds, adapting to varied elevation requirements and shortening single‑task operation cycles for continuous construction workflows.

3. Dual‑Mode Power — Full‑Scenario Indoor & Outdoor Compatibility ▾

Diesel power supports off‑road outdoor construction operation, while AC380V electric mode delivers zero‑emission, low‑noise lifting performance for indoor projects, suited for diversified working environments.

Get a Custom Quote

Factory‑direct pricing & customized export configurations for global small‑scale construction contractors
30% advance deposit, 70% balance before shipment; 35‑40 working‑day production + 40‑50‑day ocean freight lead time
Full global certification support, technical datasheet provision, inquiry reply within 24 hours
