JTZD-3T Spider Crane

Self weight: 2.7 T

Dimensions: 3.5 * 0.8 * 1.85 m

Max operating radius: 10 m

Product Introduce

JTZD‑3T 3‑Ton Micro Ultra‑Compact Crawler Spider Crane | 10.8m Max Lifting Height

3‑Ton Rated Lifting Capacity | 10.8m Max Vertical Height | 10m Safe Operating Radius | 0.8m Ultra‑Narrow Chassis | Dual Diesel/AC380V Power System

Overview

The JTZD‑3T crawler spider crane delivers steady light‑medium lifting performance for extremely confined construction spaces. Featuring 3‑ton rated lifting capacity, 10.8‑meter maximum lifting height, 10‑meter safe operating radius and dual‑mode Diesel/AC380V power system, its ultra‑slim 0.8‑meter‑width chassis adapts to factory installation, indoor maintenance and narrow‑site light‑duty construction tasks.

Applications

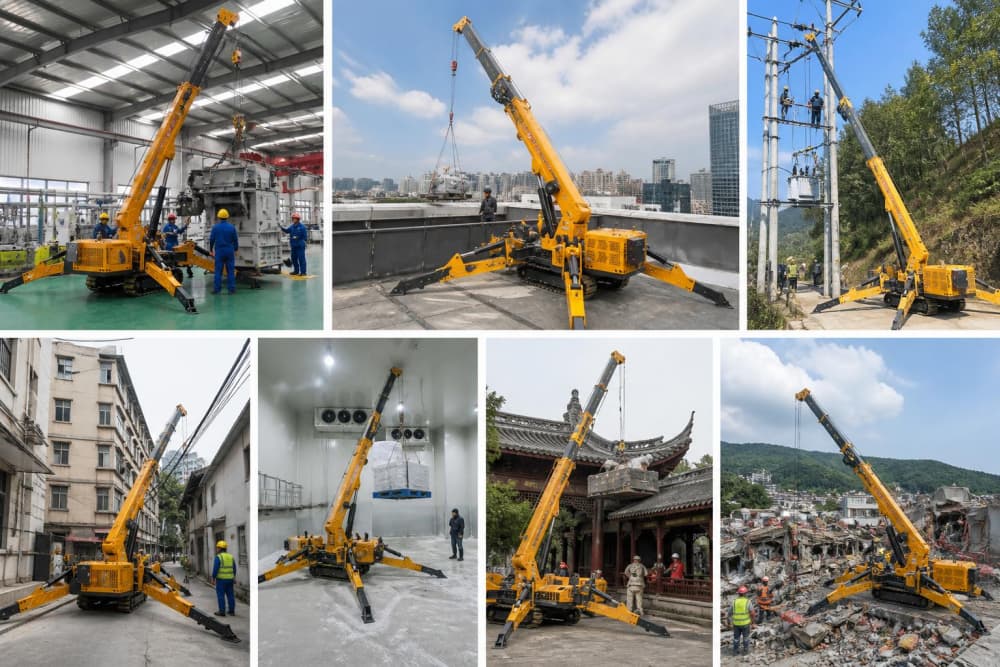

JTZD‑3T 3‑ton micro crawler spider crane with CE certification for indoor factory installation & light structural assembly

Indoor & Outdoor Light‑Duty Lifting Works | Factory Equipment Installation | Industrial Routine Maintenance | Light‑Duty Structural Assembly | Ultra‑Narrow‑Corridor Access Operations | Small‑Scale Mini Construction Projects

Key Specifications

ModelJTZD‑3T
Rated Lifting Capacity3 t
Max Vertical Lifting Height10.8 m
Max Safe Operating Radius10 m
Power SystemDual‑Mode Diesel / AC380V Electric Power
Telescopic Boom Range3.1‑10.8 m | Full Extension in 20s
Overall Transport Dimensions (L×W×H)3500 × 800 × 1850 mm
Operating Weight2.8 t
Transport‑Mode Width800 mm
Outrigger Span2400 × 2400 mm
Global CertificationsCE · ISO 9001

Key Advantages

1. 0.8m Ultra‑Narrow Chassis — Passage Through Mini‑Confined Doorways ▾

The ultra‑compact 0.8‑meter‑width body enables passage through tiny doorways, narrow indoor corridors and enclosed construction zones, reaching work spaces inaccessible to standard‑size lifting machinery.

2. 20‑Second Rapid Boom Extension — Fast Multi‑Height Adjustment ▾

The telescopic boom extends from 3.1m to full 10.8m height within 20 seconds, delivering rapid height‑switching performance to shorten single‑task operation cycles for continuous light‑duty construction workflows.

3. Dual‑Mode Power — Full‑Scenario Indoor‑Outdoor Compatibility ▾

Diesel power supports off‑road outdoor cross‑terrain lifting operation, while AC380V electric mode provides zero‑emission, low‑noise indoor lifting performance, adapting to diversified light‑duty working environments.

Get a Custom Quote

  • Factory‑direct pricing & customized export configurations for global small‑scale construction contractors
  • 30% advance deposit, 70% balance before shipment; 35‑40 working‑day production + 40‑50‑day ocean freight lead time
  • Full global certification support, technical datasheet provision, inquiry reply within 24 hours
After-sale Service
  • Comprehensive Quality Guarantee:

    We offer a 1-year warranty post-installation or 18 months after shipment (whichever comes first), ensuring reliable performance and your peace of mind.
  • 24/7 Customer Support:

    Our dedicated team provides 24/7 support, guaranteeing to resolve all technical issues within 24 hours for minimal downtime and smooth operations.
  • Regular Follow-Up and Maintenance Advice:

    We perform regular check-ins via phone or remote monitoring to proactively maintain your machinery, ensuring long-term safety, efficiency, and reliability.
  • End-to-End Logistics Support:

    We handle customs clearance, shipping, insurance, taxes, and documentation — so you can focus on business while we manage logistics smoothly.
