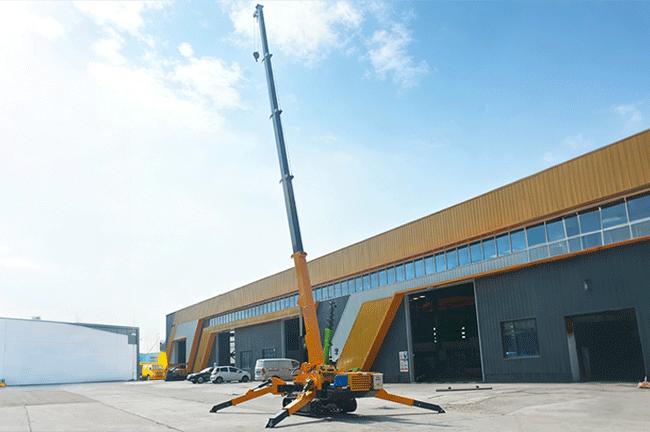

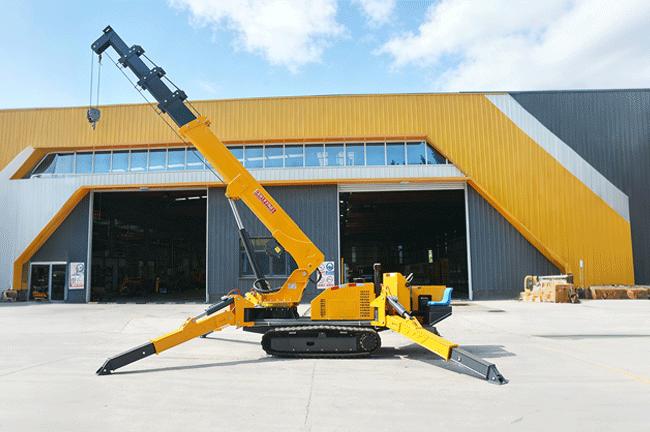

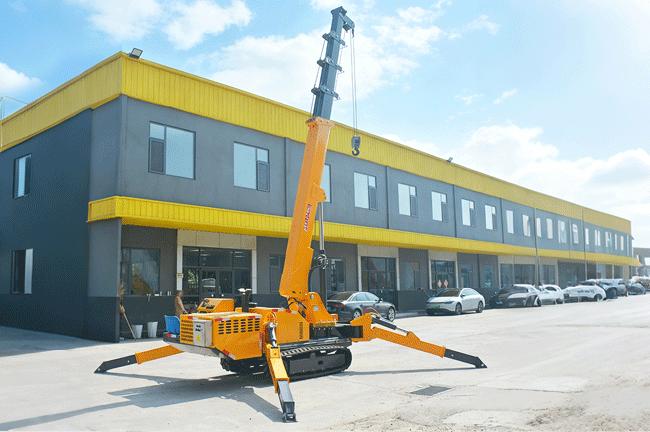

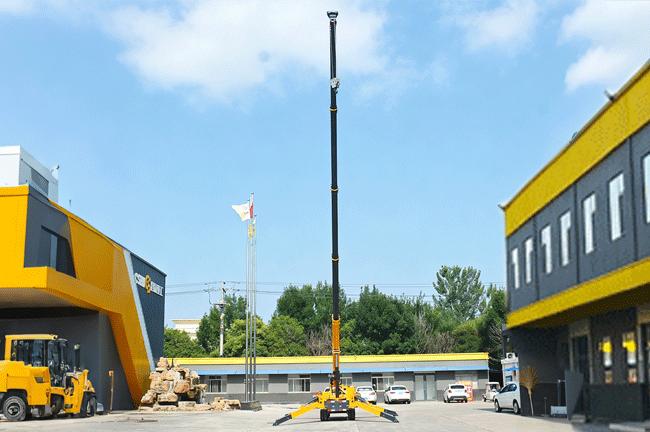

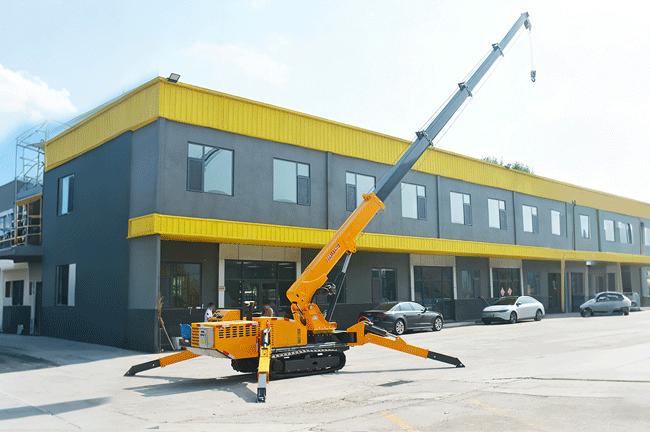

JTZD-5T Spider Crane

Self weight: 6.7 T

Dimensions: 4.7 * 1.5 * 2.25 m

Max operating radius: 15 m

Request a Quote jutop_zeus@jutopmach.cn 8619005374525

Product Introduce

JTZD‑5T 5‑Ton Ultra‑Compact Crawler Spider Crane | 17m Max Lifting Height

5‑Ton Rated Lifting Capacity | 17m Max Vertical Height | 15m Safe Operating Radius | 1.5m Ultra‑Narrow Chassis | Dual Diesel/AC380V Power System

Overview ▾

The JTZD‑5T crawler spider crane delivers steady medium‑duty lifting performance for space‑restricted construction sites. Featuring 5‑ton rated lifting capacity, 17‑meter maximum lifting height, 15‑meter safe operating radius and dual‑mode Diesel/AC380V power system, its compact 1.5‑meter‑width chassis enables flexible indoor and outdoor access, suited for structural assembly, equipment positioning and routine industrial maintenance tasks.

Applications

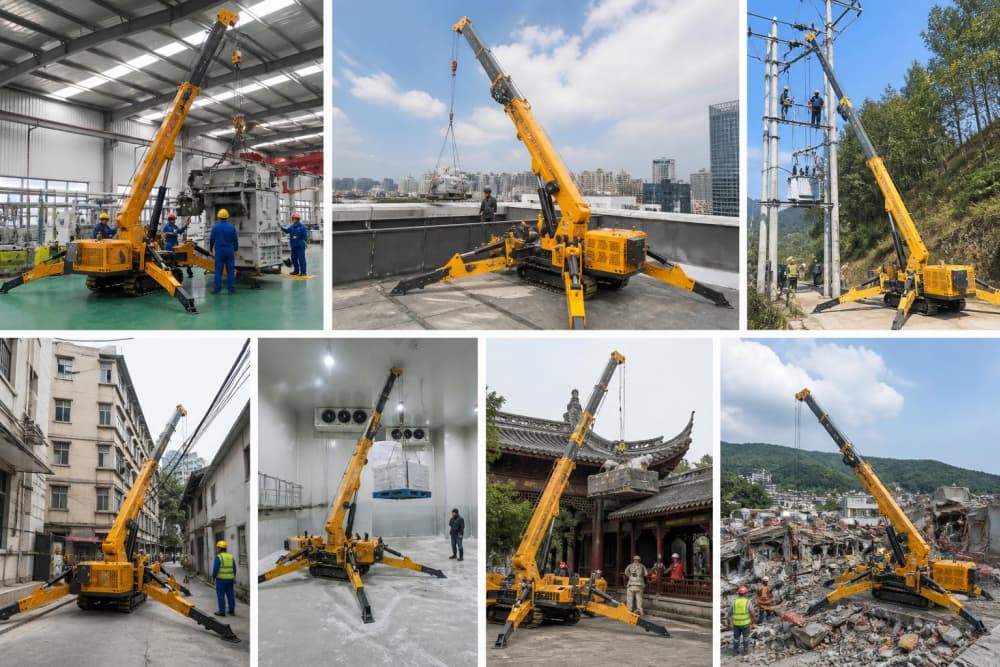

JTZD‑5T 5‑ton crawler spider crane with CE certification for indoor structural erection & equipment positioning

Key Specifications

Model	JTZD‑5T
Rated Lifting Capacity	5 t
Max Vertical Lifting Height	17 m
Max Safe Operating Radius	15 m
Power System	Dual‑Mode Diesel / AC380V Electric Power
Telescopic Boom Range	4.5‑17 m \| Full Extension in 54s
Overall Transport Dimensions (L×W×H)	4700 × 1500 × 2250 mm
Operating Weight	4.8 t
Transport‑Mode Width	1500 mm
Outrigger Span	3200 × 3200 mm
Global Certifications	CE · ISO 9001

Key Advantages

1. 1.5m Ultra‑Narrow Chassis — Passage Through Confined Doorways & Corridors ▾

The ultra‑compact 1.5‑meter‑width body enables passage through narrow doorways, indoor corridors and densely‑arranged construction zones, supporting flexible operation in limited‑area building and renovation sites.

2. Agile Telescopic Boom — Fast Height Adjustment for Sequential Lifting Tasks ▾

The telescopic boom extends from 4.5m to full 17m height within 54 seconds, delivering rapid height adjustment performance and shortening single‑task operation cycles for continuous construction workflows.

3. Dual‑Mode Power — All‑Scenario Indoor‑Outdoor Operational Compatibility ▾

Diesel power supports off‑road outdoor construction travel and lifting, while AC380V electric mode provides zero‑emission, low‑noise indoor lifting performance, adapting to diversified working environments.

Get a Custom Quote

Factory‑direct pricing & customized export configurations for global small‑scale construction contractors
30% advance deposit, 70% balance before shipment; 35‑40 working‑day production + 40‑50‑day ocean freight lead time
Full global certification support, technical datasheet provision, inquiry reply within 24 hours

After-sale Service

Comprehensive Quality Guarantee:
We offer a 1-year warranty post-installation or 18 months after shipment (whichever comes first), ensuring reliable performance and your peace of mind.
24/7 Customer Support:
Our dedicated team provides 24/7 support, guaranteeing to resolve all technical issues within 24 hours for minimal downtime and smooth operations.
Regular Follow-Up and Maintenance Advice:
We perform regular check-ins via phone or remote monitoring to proactively maintain your machinery, ensuring long-term safety, efficiency, and reliability.
End-to-End Logistics Support:
We handle customs clearance, shipping, insurance, taxes, and documentation — so you can focus on business while we manage logistics smoothly.
