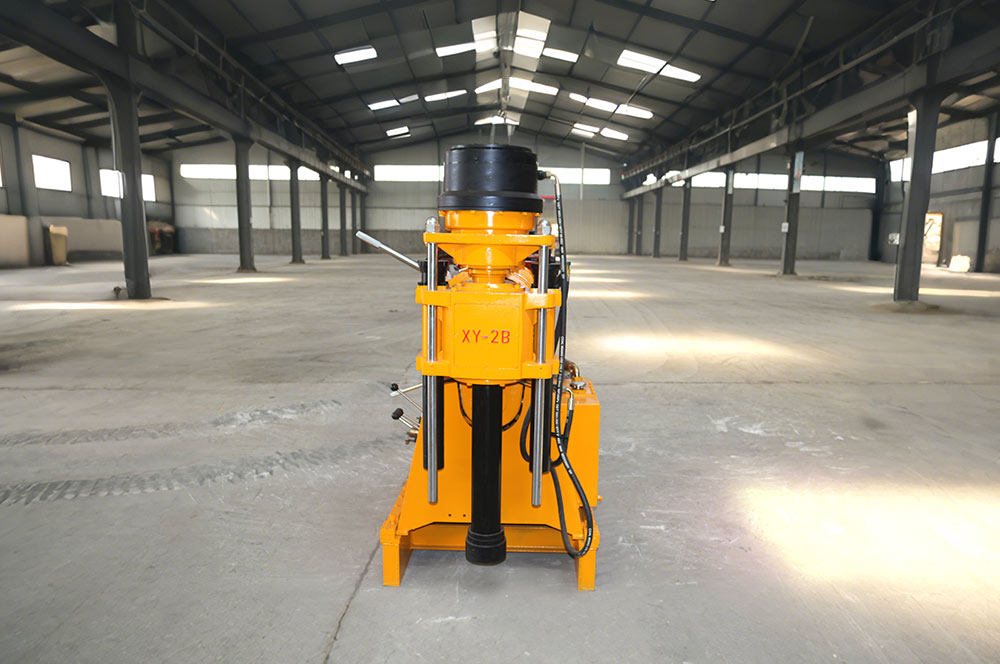

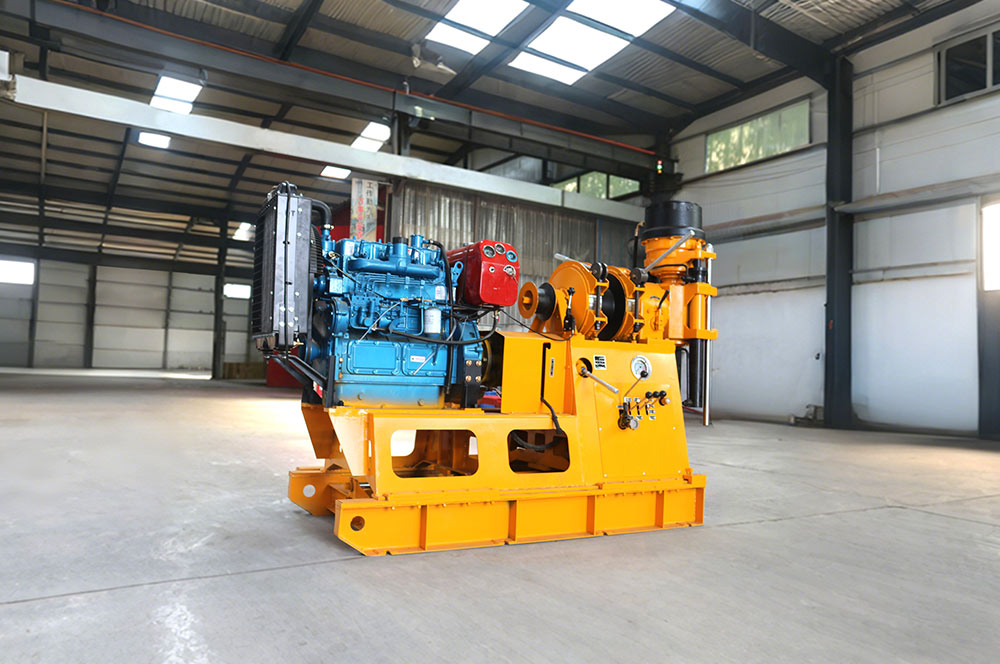

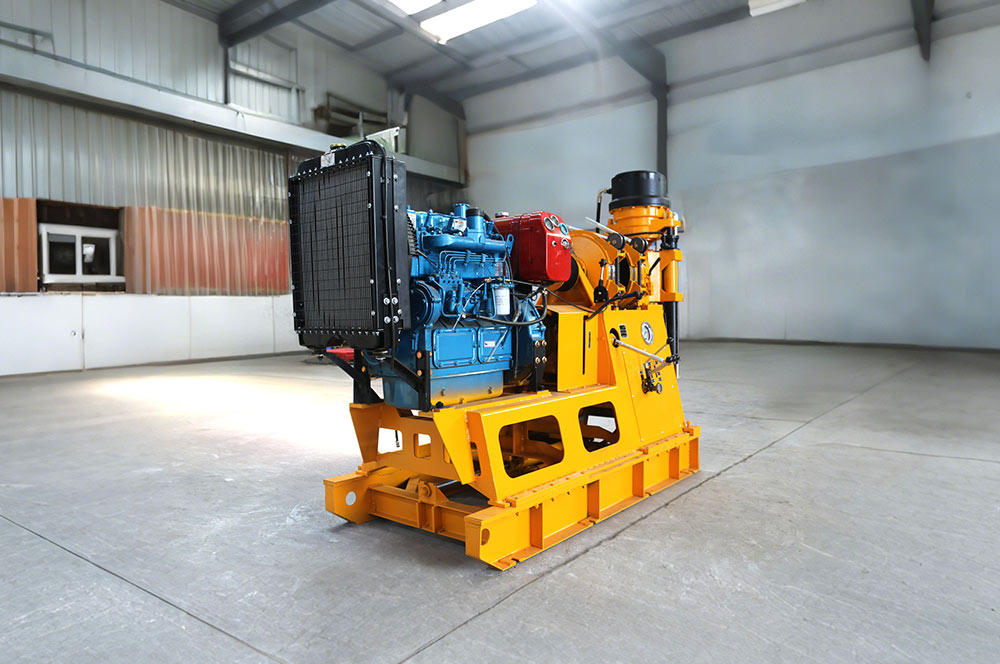

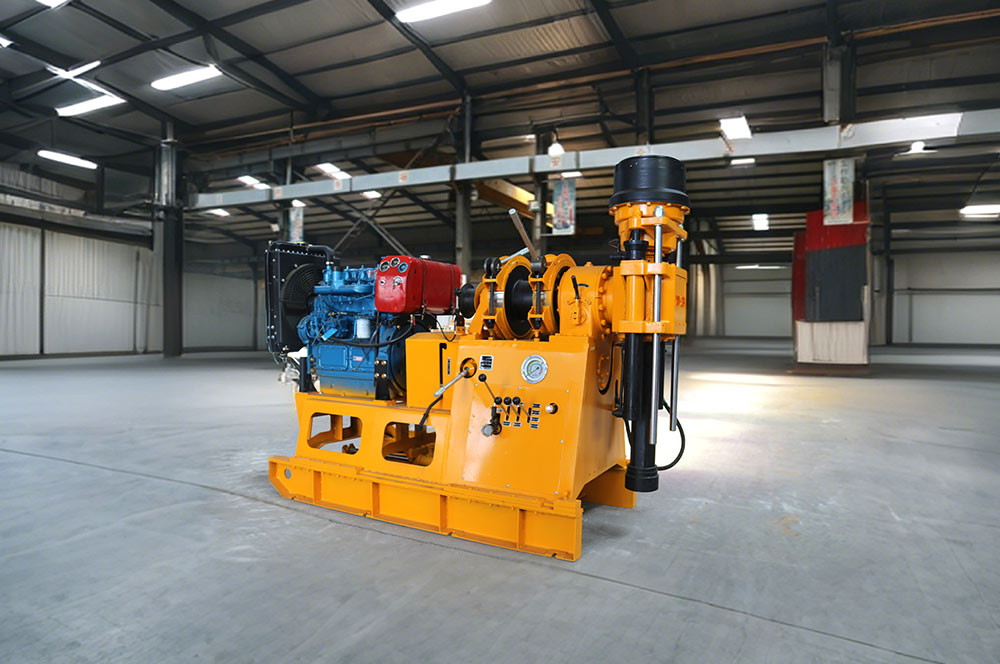

JTXY-2 Hydraulic Drill Rig

Overview

The JTXY-2 hydraulic drill rig is built for up to 300 m drilling in geological  exploration, foundation testing, grouting holes and civil water well projects.  With a 75-300 mm drilling diameter range, a 65°-90° drilling angle and 6 t  vertical shaft lifting capacity, it suits small-to-medium drilling teams that  need flexible site use and practical mid-depth drilling performance.

Specifications

Key Features

1. Reaches 300 m Depth

With a drilling depth of up to 300 m, the JTXY-2 is suited to mid-depth  drilling work across exploration, testing and civil well projects. It gives  small and medium teams useful depth coverage without moving to a much larger  platform rig.

2. 65°-90° Drill Angle

A 65°-90° drilling angle range allows the rig to handle both vertical and  inclined drilling applications. That makes it more flexible for foundation  testing, grouting holes and site conditions where straight-down drilling is  not the only requirement.

3. Up to 300 mm Holes

The 75-300 mm drilling diameter range supports a wide spread of bore sizes,  from smaller final holes to larger opening diameters. This gives contractors a  more adaptable machine for different project types and drilling targets.

4. 6 t Shaft Lift

A 6 t vertical shaft lifting capacity gives the rig solid lifting support for  routine drilling operations. It helps provide steady handling when working  with drill tools and rod loads on 300 m-class jobs.

5. 3 t Rope Hoist

The rig is rated for 3 t single rope lifting capacity with a 0.5-1.9 m/s  lifting speed, supporting practical hoisting performance during daily work.  Together with a 50 m drum capacity, it adds useful handling support for field  drilling operations.

Get a Quote

Contact us for pricing, specifications and configuration details of the  JTXY-2 hydraulic drill rig.
