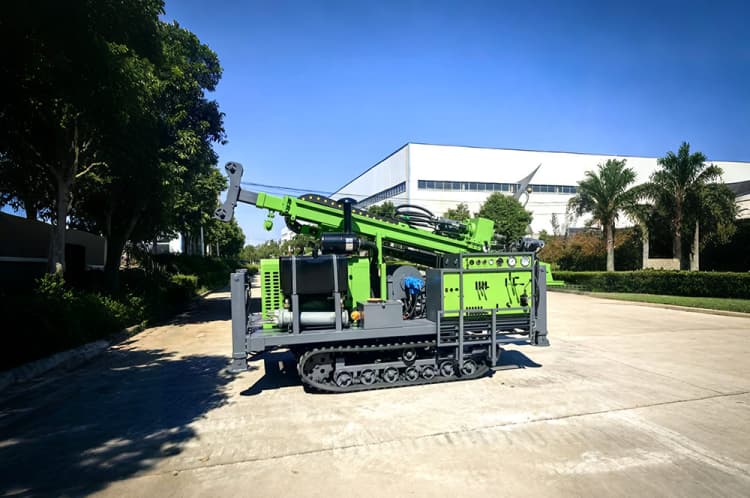

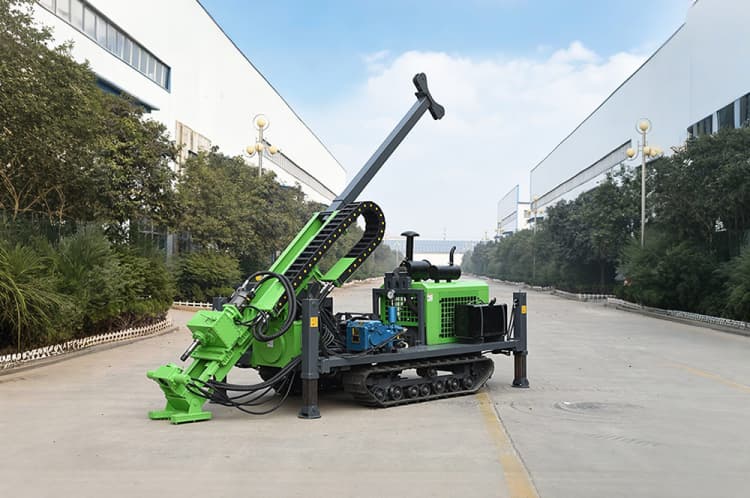

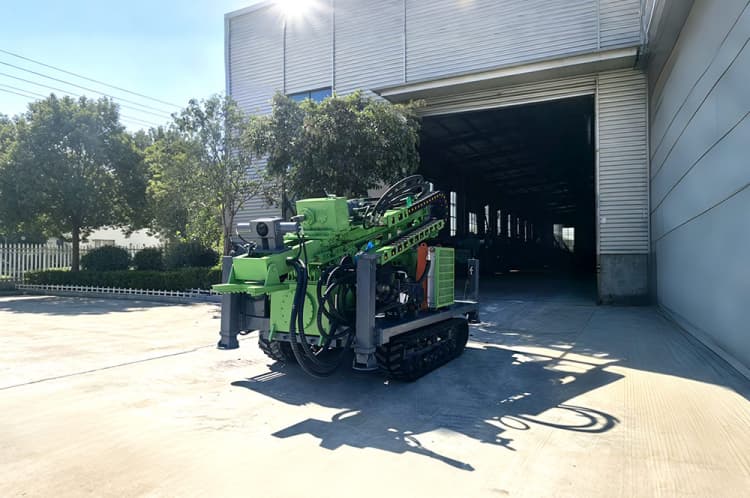

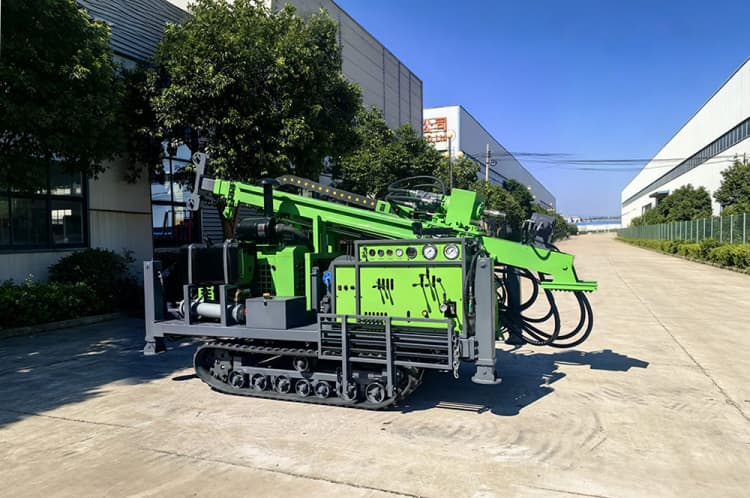

JTYS600 Core Drilling Rig

Drilling depth: 300-650m

Main motor power: 92kW

Total weight: 4.5T

Request a Quote jutop_zeus@jutopmach.cn 8619005374525

Product Introduce

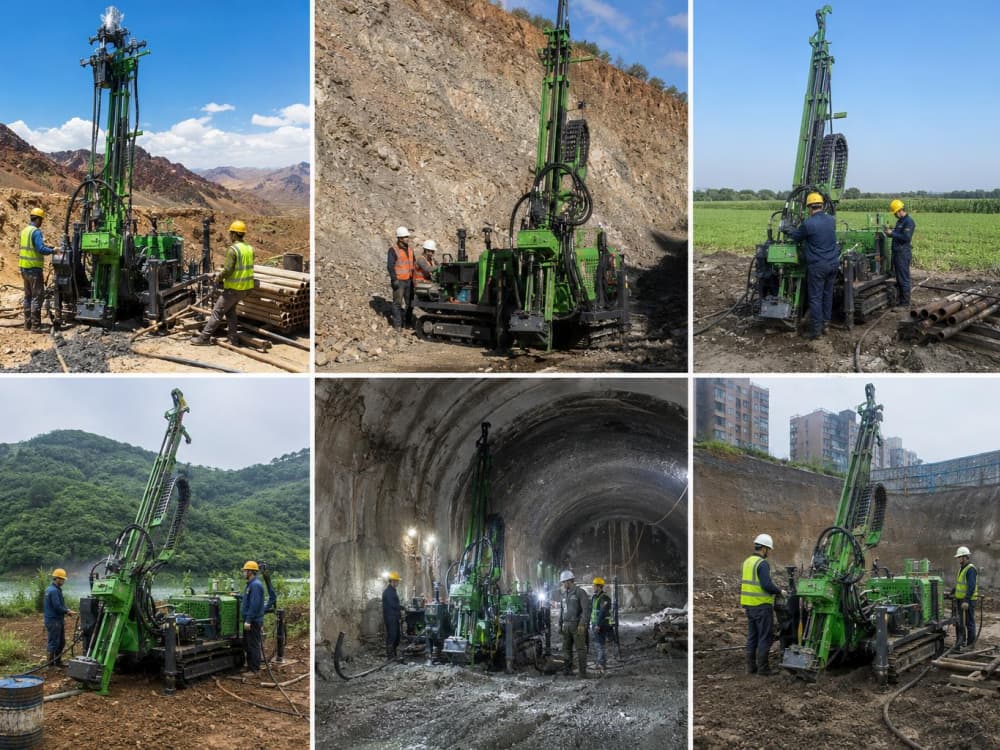

JT‑600 Wire-Line Core Drill Rig | 650m Max Drilling Depth

650m Max BTW Depth | 240kN Lifting Force | Yuchai 92kW Engine | 45°‑90° Angular Drilling

Technical Specifications

Max Drilling Depth	650 m (BTW) / 600 m (NTW)
Engine Power	92 kW (Yuchai 4B3.9‑G2)
Max Torque	1,400 N.m
Lifting Capacity	240 kN
Hydraulic Pressure	32 + 16 MPa (High-Pressure System)
Drilling Angle	45° - 90°
Weight	4.5 t
Certifications	ISO9001, CE, SONCAP, PVoC, TISI

Engineering Advantages

1. Optimized 650m Deep-Hole Capacity

Surpassing standard 600-class wire-line rigs, the JTYS-600 achieves 650m (BTW), providing a critical depth advantage for medium-scale mineral exploration and infrastructure sampling.

2. High-Pressure Hydraulic Efficiency (32+16MPa)

Equipped with a high-pressure hydraulic circuit, this rig maintains robust propulsion and anti-sticking performance in hard rock strata, essential for challenging mountain geological surveys.

3. Yuchai 92kW Powerplant

Powered by the mature Yuchai 4B3.9-G2 engine (1,400 N.m torque), it offers exceptional fuel reliability and parts availability, minimizing operational downtime in remote sites.

4. 110m/min Rapid Core Retrieval

The high-speed wireline winch significantly reduces non-drilling time, increasing daily meterage—a key driver for profitability in multi-site project tenders.

5. Lightweight Mobility (4.5t)

At only 4.5 tons, the rig offers superior passability on narrow mountain trails and rural access roads, significantly reducing mobilization costs between scattered project locations.

6. Cost-Per-Meter Efficiency

With a full-load fuel consumption of 14‑18 L/h and 250-hour service intervals, the JTYS-600 delivers one of the most competitive Cost-Per-Meter (CPM) ratios in the 600-class segment.

After-sale Service

Comprehensive Quality Guarantee:
We offer a 1-year warranty post-installation or 18 months after shipment (whichever comes first), ensuring reliable performance and your peace of mind.
24/7 Customer Support:
Our dedicated team provides 24/7 support, guaranteeing to resolve all technical issues within 24 hours for minimal downtime and smooth operations.
Regular Follow-Up and Maintenance Advice:
We perform regular check-ins via phone or remote monitoring to proactively maintain your machinery, ensuring long-term safety, efficiency, and reliability.
End-to-End Logistics Support:
We handle customs clearance, shipping, insurance, taxes, and documentation — so you can focus on business while we manage logistics smoothly.
