Drilling depth: 600-1200m
Main motor power:118kW
Total weight: 6T
1,200m Max Depth (BTW) | 300kN Lifting Force | Dual-Engine Option (Yuchai/Weichai) | 0°‑90° Multi-Angle Drilling
| Max Drilling Depth | 1,200 m (BTW) / 1,000 m (NTW) |
| Engine Power | 118 kW (Yuchai YC6MK / Weichai WP6) |
| Max Torque | 1,800 N.m |
| Lifting Capacity | 300 kN |
| Hydraulic Pressure | 32 + 16 MPa (High-Pressure System) |
| Drilling Angle | 0° - 90° (Full-Angle) |
| Weight | 6.0 t |
| Certifications | ISO9001, CE, SONCAP, PVoC, SIRIM |
Surpassing standard 800-class rigs that typically plateau at 1,000m, the JTYS-800 reaches 1,200m (BTW) / 1,000m (NTW), providing a critical depth advantage for medium-scale exploration projects.
Equipped with a robust 32+16MPa hydraulic circuit, this rig maintains high propulsion and anti-sticking performance in hard rock and fractured strata, typical of challenging mountain terrains.

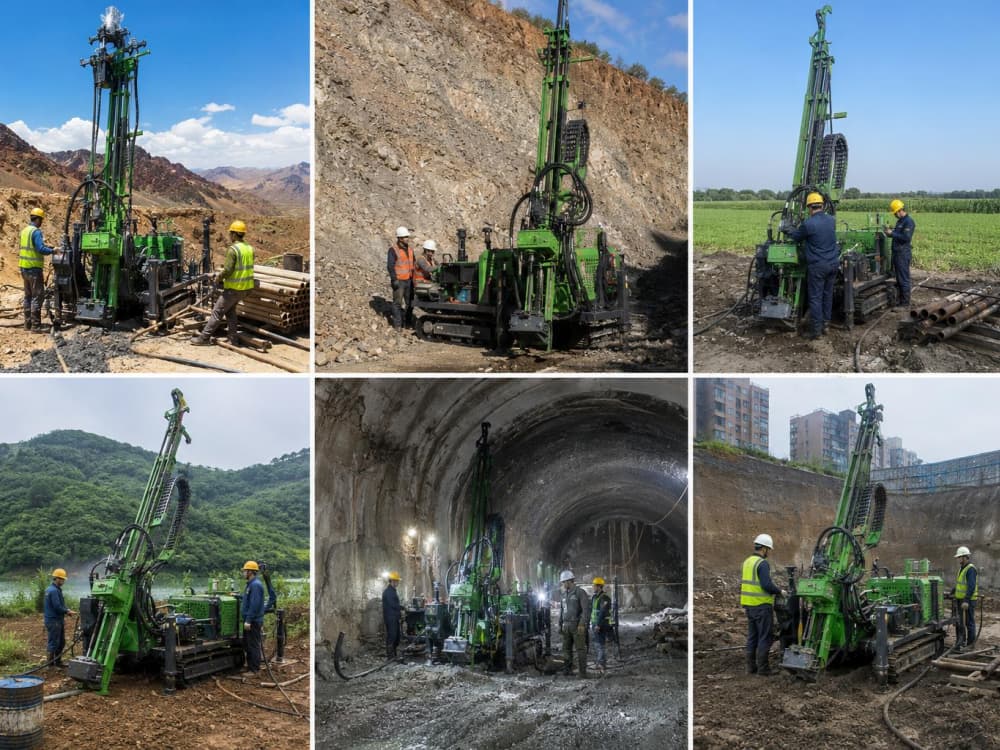

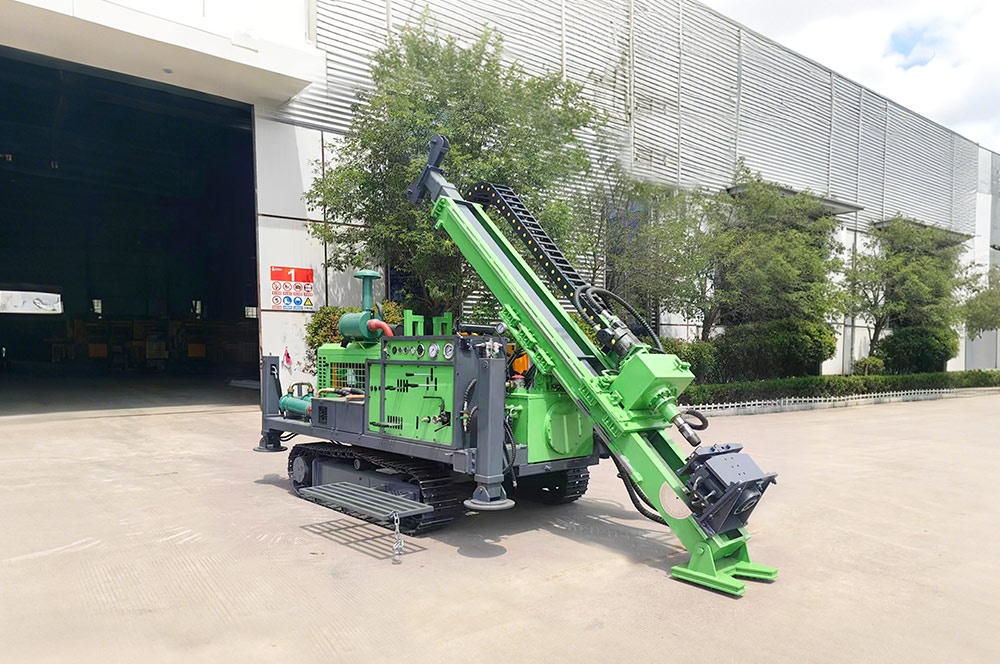

The unrestricted 0°-90° mast adjustment supports vertical, inclined, and horizontal boreholes, making it highly adaptable for complex geotechnical surveys and infrastructure tunnel engineering.
Choose between Yuchai YC6MK or Weichai WP6 power units. Both engines feature extensive global spare parts availability, ensuring minimal downtime for cross-border mining operations.
At 6.0t, the JTYS-800 offers superior maneuverability over traditional heavy rigs. It easily navigates narrow rural access roads and mountainous trails, optimizing setup time for scattered exploration sites.
Optimized fuel consumption (16‑20 L/h) coupled with 250-hour maintenance intervals significantly lowers the Cost Per Meter (CPM), improving project margins for budget-conscious contracts.
