JT-100KW Weichai Industrial Generator

100kW Prime Power | 6-Cylinder Heavy-Duty Reliability for Industrial & Mining Applications

JT-100KW 125kVA Weichai 6-cylinder generator for mining, telecom, and construction power supply

Engine: Weichai WP6D132E200 6-Cylinder
Output: 100kW Prime / 110kW Standby
Runtime: 15 Hours @ 75% Load
Certifications: Global Standard Compliance (ISO, CE, SONCAP, etc.)

Product Overview

The JT-100KW is a premium industrial generator powered by the renowned 6-cylinder Weichai WP6D132E200 engine. Unlike standard 4-cylinder entry-level units, this model features a 6-cylinder inline configuration, delivering superior vibration damping and load-bearing stability. Built for complex working environments, it is the ideal power solution for manufacturing, mining, telecom, and healthcare facilities that prioritize heavy-load reliability and long-term continuous operation.

Technical Specifications

Category	Specification
Model	JT-100KW
Prime Power	100 kW / 125 kVA
Standby Power	110 kW / 137.5 kVA
Voltage	400/230 V
Rated Current	180 A
Frequency	50 Hz
Engine Model	Genuine Weichai WP6D132E200, 6-Cylinder In-Line Turbocharged
Displacement	6.75 L
Bore × Stroke	105 mm × 130 mm
Compression Ratio	18:1
Cycle Type	4-Cycle Diesel
Engine Rated Speed	1500 RPM
Peak Torque @1500RPM	680 N·m
Cooling System	Water-Cooled
Engine Oil Capacity	16 L
Start Motor Voltage	24V DC
Alternator Brand & Type	Stamford/Marathon, Brushless, Self-exciting, H-Class Insulation, 3-Phase
Phase & Connection	3-Phase 4-Wire
Power Factor	0.8 (lagging)
Insulation Class	Class H
Protection Grade	IP21
Total Harmonic Distortion (THD)	<5%
Fuel Consumption (100% Full Load)	208-216 g/kW·h
Fuel Tank Capacity	320 L / ≈15-hr @ 75% Load
Scheduled Maintenance Interval	500 Working Hours
Noise Level	68-70 dB(A) @ 1 Meter
Max Operating Altitude	≤ 1000 m
Max Parallel Units	Up to 8 Units (IEC 8528-5)
ATS Compatibility	Yes
Transport Dimensions	4000 × 1800 × 2200 mm
Overall Weight	3.0 t
Certifications	ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI
Lead Time	45-50 Working Days + 40-50 Days Ocean Freight
Payment Term	30% Advance, 70% Before Shipment

Core Advantages

1. 6-Cylinder Smoothness

The 6-cylinder inline architecture significantly reduces vibration compared to 4-cylinder alternatives. This results in smoother power delivery and extended component lifespan, making it perfect for 24/7 industrial or mining operations.

2. 680 N·m Heavy-Load Torque

With a high torque reserve, the engine handles the "power spikes" common when industrial machinery (crushers, pumps, mixers) starts up, ensuring the voltage remains rock-steady even under demanding job site conditions.

3. Fuel Flexibility (18:1 Compression)

The high compression ratio provides excellent tolerance for regional fuel variations. This is a critical advantage for remote sites where premium diesel might not always be readily available, reducing the risk of fuel-related failures.

4. 15-Hour Shift Capacity

The 320L tank supports 15 hours of continuous operation at 75% load, perfectly aligning with full-shift industrial requirements and minimizing the need for manual refueling during working hours.

5. Global Weichai Support

Benefit from the massive Weichai international service network. Spare parts and technical support are accessible across all key overseas markets, drastically lowering the risk and maintenance costs for your multi-site projects.

6. Intelligent Safety & ATS

Equipped with H-Class insulation and DTC intelligent diagnostics, this unit is built for "unattended" operation. Whether for telecom stations or medical backup, the automatic ATS functionality ensures power is always available when needed most.

Get a Custom Quote

Factory-direct pricing, customized configurations, and full global logistics support. Guaranteed response within 48 business hours.

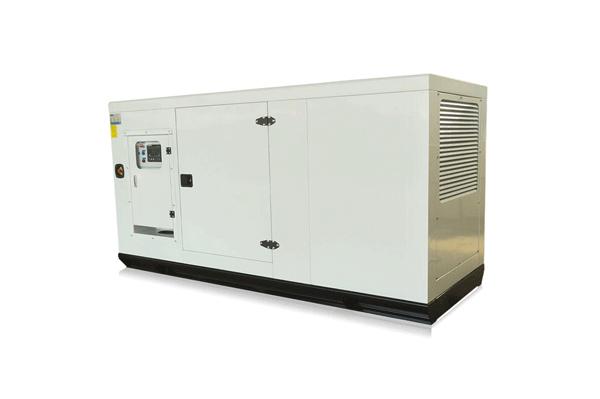

JT-100KW Weichai Generator
