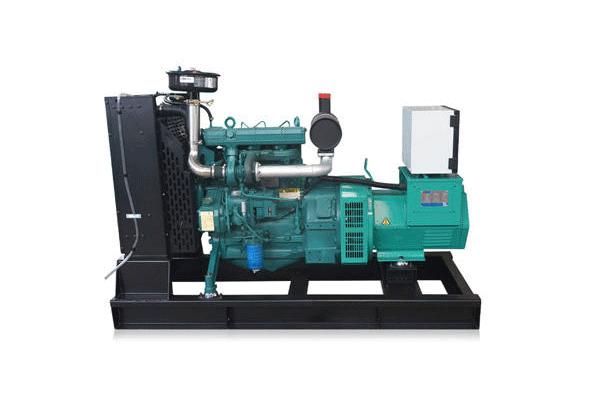

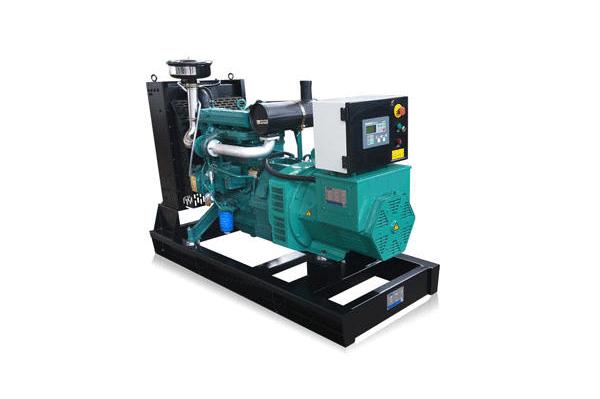

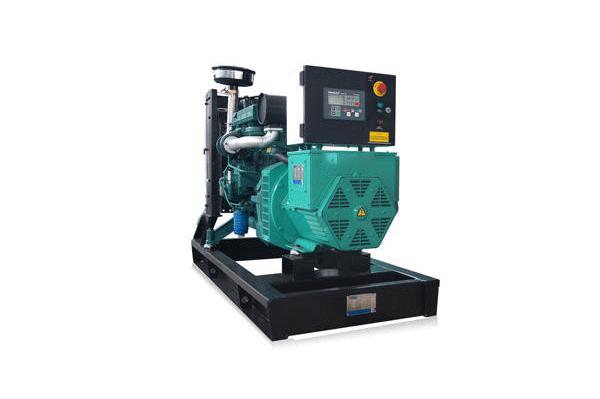

JT-30KW Weichai Industrial Generator
30kW Prime Power | Ultra-Compact, Mobile Power for Small-Scale & Off-Grid Applications
- Engine: Weichai WP2.3D33E200 4-Cylinder
- Output: 30kW Prime / 33kW Standby
- Noise Level: Ultra-Quiet 62-64 dB(A)
- Mobility: 1.2t Lightweight Compact Body
Product Overview
The JT-30KW is a high-precision, ultra-compact industrial power generator engineered for micro-scale portable power and emergency backup scenarios. Powered by the reliable Weichai WP2.3D33E200 engine, this unit is perfectly optimized for light-load continuous operation. Its combination of whisper-quiet noise levels, budget-friendly fuel economy, and 500-hour service intervals makes it the ideal solution for retail, farming, small construction crews, and remote telecom micro-stations.
Technical Specifications
| Category | Specification |
|---|---|
| Model | JT-30KW |
| Prime Power | 30 kW / 37.5 kVA |
| Standby Power | 33 kW / 41.25 kVA |
| Voltage | 400/230 V |
| Rated Current | 54 A |
| Frequency | 50 Hz |
| Engine Model | Genuine Weichai WP2.3D33E200, 4-Cylinder In-Line Turbocharged |
| Displacement | 2.289 L |
| Bore × Stroke | 89 mm × 92 mm |
| Compression Ratio | 17.8:1 |
| Cycle Type | 4-Cycle Diesel |
| Engine Rated Speed | 1500 RPM |
| Peak Torque @1500RPM | 220 N·m |
| Cooling System | Water-Cooled |
| Engine Oil Capacity | 8 L |
| Start Motor Voltage | 24V DC |
| Alternator Brand & Type | Stamford/Marathon, Brushless, Self-exciting, H-Class Insulation, 3-Phase |
| Phase & Connection | 3-Phase 4-Wire |
| Pole Number | 4 |
| Power Factor | 0.8 (lagging) |
| Insulation Class | Class H |
| Protection Grade | IP21 |
| Total Harmonic Distortion (THD) | <5% |
| Fuel Consumption (100% Full Load) | 202-210 g/kW·h |
| Fuel Tank Capacity | 120 L |
| Maintenance Interval | 500 Working Hours |
| Noise Level | 62-64 dB(A) @ 1 Meter |
| Max Operating Altitude | ≤ 1000 m |
| Max Parallel Units | Up to 6 Units (IEC 8528-5) |
| ATS Compatibility | Yes |
| Transport Dimensions | 2800 × 1500 × 1800 mm |
| Overall Weight | 1.2 t |
| Certifications | ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI |
| Lead Time | 40-45 Working Days + 40-50 Days Ocean Freight |
| Payment Term | 30% Advance, 70% Before Shipment |
Core Advantages
1. Precision 30kW Micro-Scale Power
Eliminate unnecessary costs by matching your capacity exactly to your needs. The JT-30KW avoids the power waste of oversized units, offering optimal investment-to-output value for small shops, farms, and portable work teams.
2. 220 N·m Torque for Light-Duty Cycles
Specifically optimized for frequent starts/stops, this unit provides the steady torque required by small pumps and portable tools, preventing stalls and voltage dips common in generic low-power generators.
3. Industry-Leading Fuel Efficiency
With an official full-load fuel consumption of 202-210 g/kW·h, this unit is engineered to maximize profitability for small-scale operators by significantly reducing daily fuel expenditures.
4. Ultra-Quiet 62-64dB Operation
Perfectly compliant with noise regulations for residential and rural areas. This unit operates whisper-quiet, ensuring you can provide backup power in noise-sensitive locations like clinics and village-adjacent sites without disruption.
5. 1.2t Fully Portable Design
Lightweight and compact, the JT-30KW can be moved via standard pickup truck or trailer. It requires no specialized heavy lifting equipment, providing unparalleled deployment flexibility for decentralized mobile projects.
6. 500-Hour Low-Maintenance Standard
Designed for teams without dedicated electrical staff. With double the maintenance interval of standard mini-generators and easily accessible service points, routine care is simple and cost-effective.
Get a Custom Quote
Factory-direct pricing, customized configurations (including trailer or silent canopy options), and full global support. Response guaranteed within 24 hours.
