Drilling depth: 1000m
Drilling diameter: 140-400mm
Main motor power: 194kw
Top-Tier Ultra-Deep Drilling | Capture High-Value Global Engineering Projects

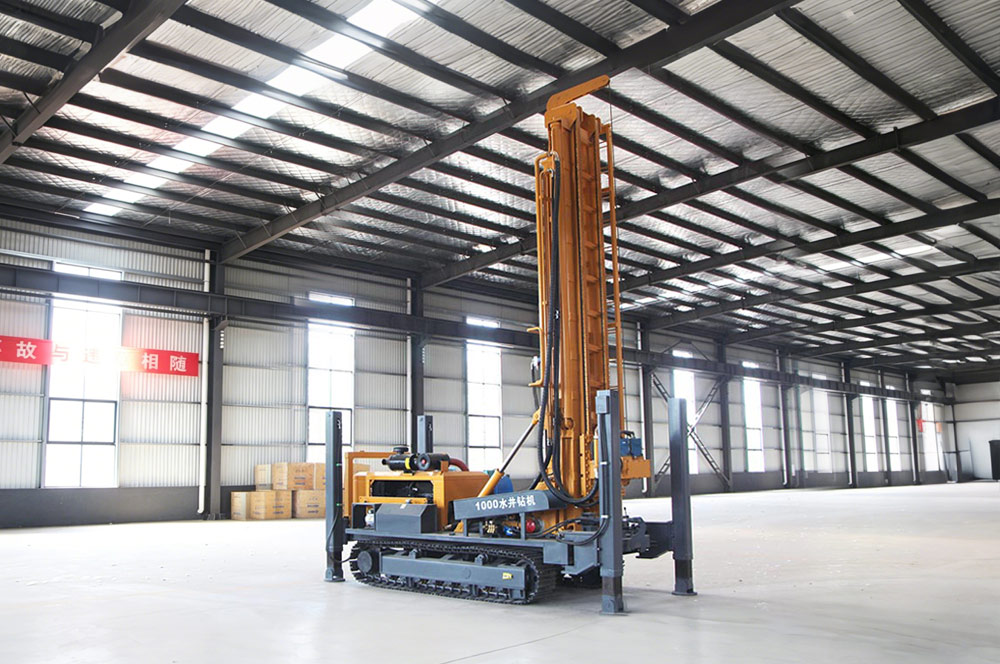

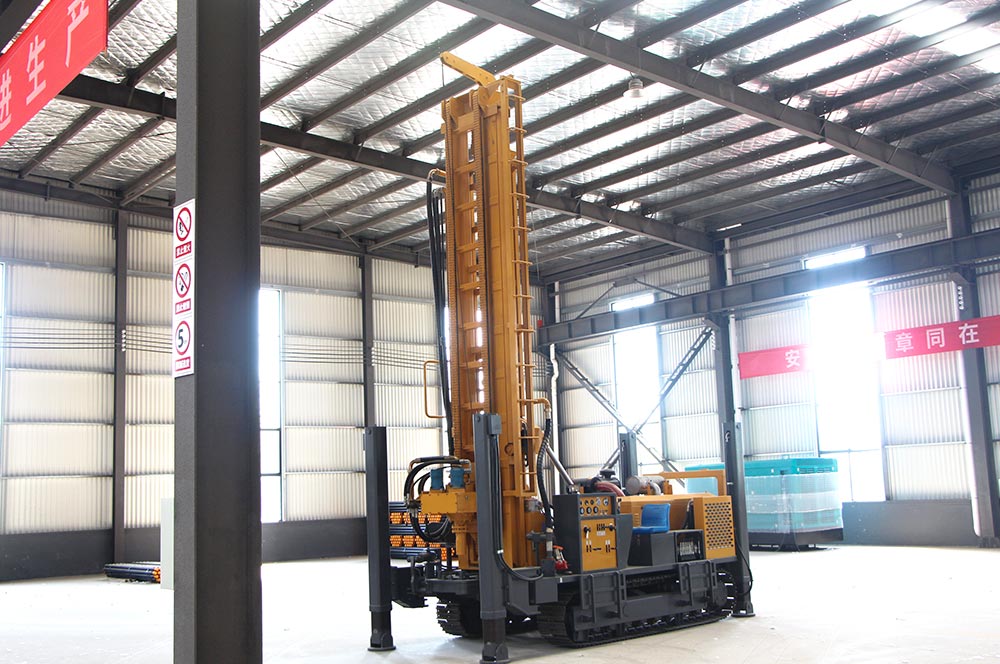

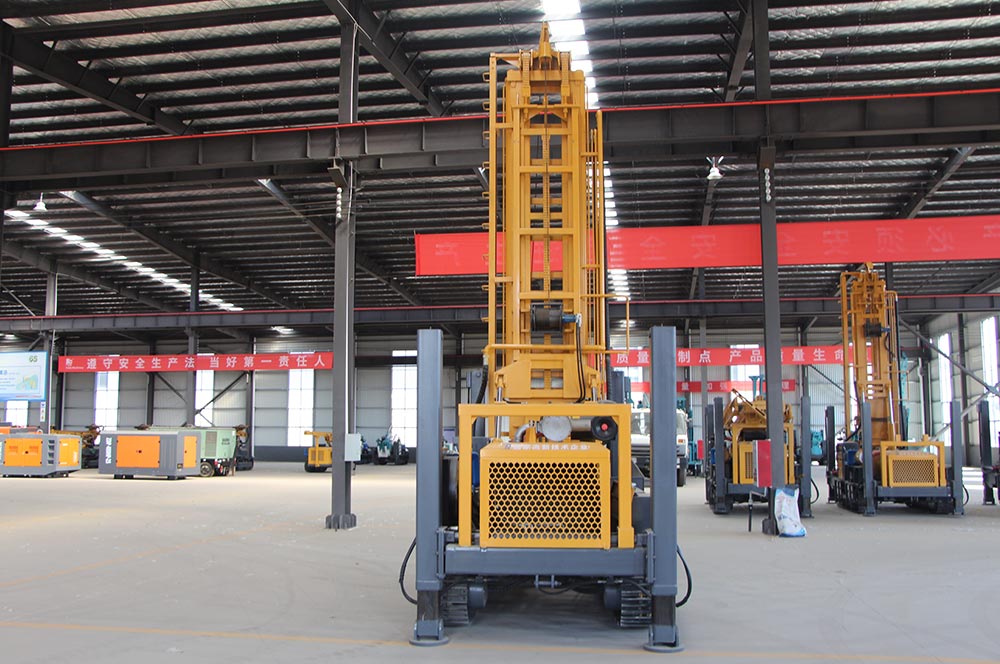

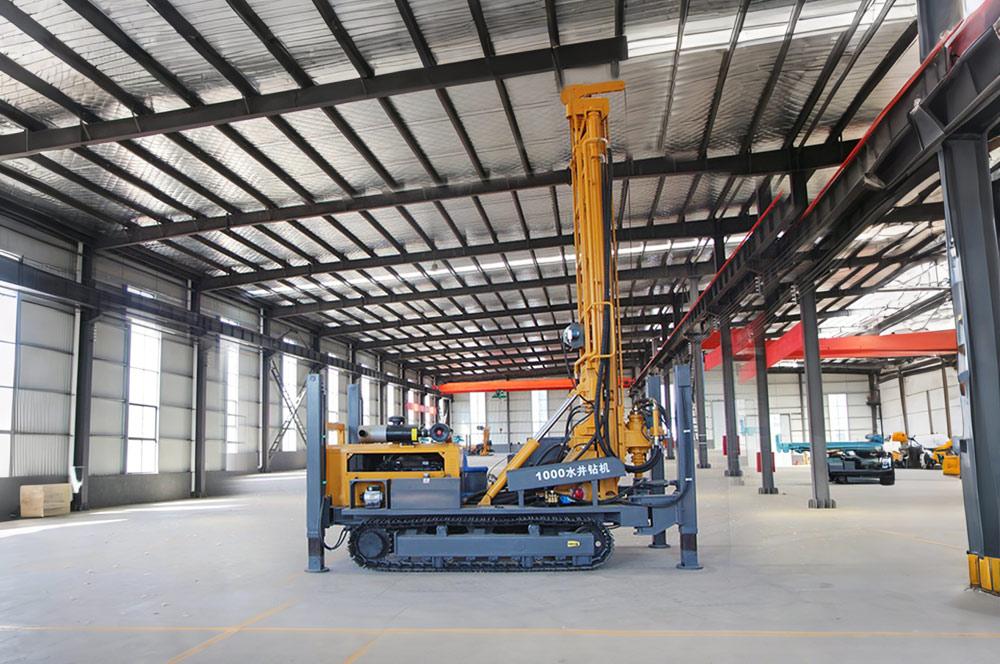

The JTQZ-1000 stands as the ultimate flagship model for thousand-meter ultra-deep drilling. Perfect for high-end geothermal development, hydrological exploration and large-scale industrial water supply projects, it delivers outstanding stability and load capacity in complex rock formations. Built with premium power and extreme lifting performance, this rig enables you to take on exclusive high-profit projects, minimize construction risks, and gain long-term competitive advantages in the global drilling market.
| Model | JTQZ-1000 |
| Weight | 13 t |
| Drill Hole Diameter | 140-400 mm |
| Drill Hole Depth | 1,000 m |
| Single Push Length | 6.6 m |
| Travel Speed | 2.5 km/h |
| Climbing Ability | 30° |
| Engine Power | 194 kW |
| Working Air Pressure | 1.7-3.5 MPa |
| Air Consumption | 17-42 m³/min |
| Rotation Speed | 45-140 rpm |
| High Leg Stroke | 1.7 m |
| Drill Pipe Diameter | 102/108/114/117 mm |
| Drill Pipe Length | 3.0 m / 6.0 m |
| Rig Lifting Force | 36 t |
| Rapid Rise Speed | 20 m/min |
Capable of stable drilling up to 1000 meters, easily tackling ultra-hard rock and complex deep strata. Qualified for undertaking high-priced thousand-meter geothermal and industrial deep well projects beyond the reach of ordinary rigs.
Industry-leading 36-ton lifting capacity easily bears heavy drill strings in ultra-deep holes. Sufficient pullback margin effectively avoids pipe sticking and burying accidents, reducing downtime and economic losses.
194kW high-power engine provides ultimate power backup, maintaining stable output under long-term high-load and ultra-deep working conditions. Durable performance lowers maintenance frequency and adapts to continuous large-scale engineering tasks.
140-400mm wide drilling diameter range meets standard deep wells and large-diameter casing requirements. One machine covers multiple project demands, greatly expanding business profit scope.
Supports multiple specifications of thickened drill pipes, matched with 6.0m long pipe design to reduce rod replacement frequency. Optimized workflow saves labor cost and greatly improves overall construction efficiency.
Contact us now for factory direct price, complete configuration options and professional project solutions to expand your high-end drilling business.
