JTQZ-600 Pneumatic Drilling Rig

Drilling depth: 600m

Drilling diameter: 140-350mm

Main motor power: 113kw

Request a Quote jutop_zeus@jutopmach.cn 8619005374525

Product Introduce

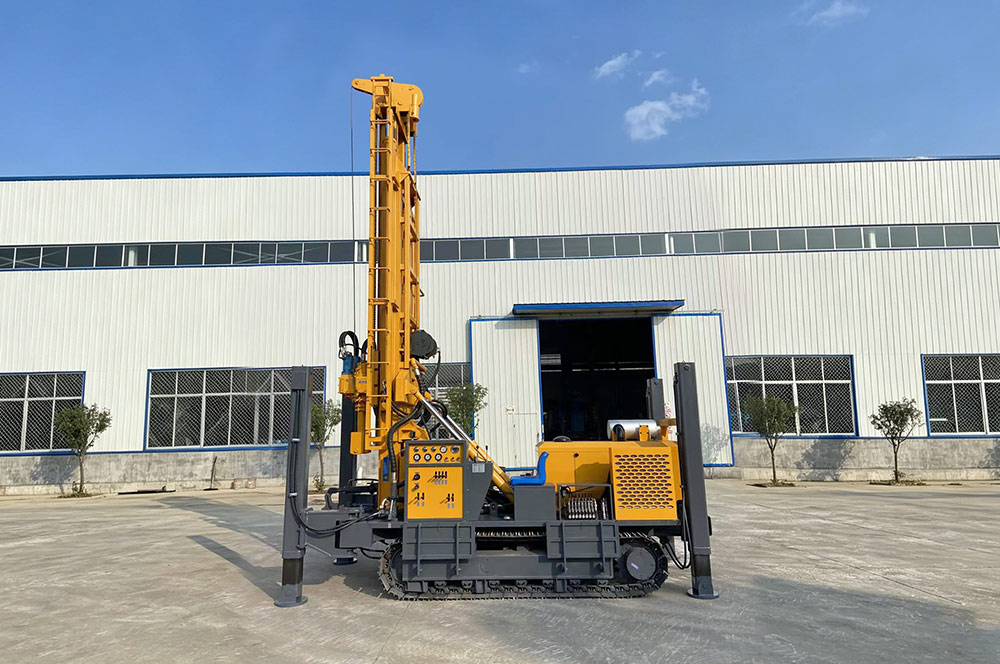

JTQZ-600 Water Well Drill Rig

600m Ultra Deep Well Drill Rig | For High-Profit Geothermal & Industrial Projects

Overview

JTQZ-600 is built for 600m ultra-deep well drilling, ideal for high-value geothermal, industrial water supply and large municipal projects. It delivers stable performance in hard rock and complex formations, with strong power, huge lifting capacity and wide bore range. This rig helps you take exclusive high-priced projects, reduce breakdown risks, save labor costs and achieve faster returns.

Specifications

Model	JTQZ-600
Weight	11.5 t
Drill Hole Diameter	140-350 mm
Drill Hole Depth	600 m
Single Push Length	6.6 m
Travel Speed	2.5 km/h
Climbing Ability	30°
Engine Power	113 kW
Working Air Pressure	1.7-3.5 MPa
Air Consumption	17-42 m³/min
Rotation Speed	45-130 rpm
High Leg Stroke	1.7 m
Drill Pipe Diameter	102/108/114 mm
Drill Pipe Length	1.5 m / 2.0 m / 3.0 m / 6.0 m
Rig Lifting Force	28 t
Rapid Rise Speed	20 m/min

Core Value Advantages

1. 600m Ultra Deep Drilling – Win High-Value Projects

Drills reliably up to 600 meters, easily handling hard rock and complex formations. Perfect for high-priced geothermal, industrial and municipal deep well projects that other rigs cannot complete.

2. 350mm Large Bore – More Applications & Higher Income

Supports 140-350mm wide bore range, ideal for large-diameter high-capacity water wells. One machine covers all well types, expands your business scope and increases project revenue.

3. 28t Super Lifting Force – Avoid Stuck Pipe & Losses

Industry-leading 28-ton lifting capacity safely pulls heavy drill strings from deep holes. Greatly reduces stuck pipe risks, breakdowns and downtime losses on critical deep well jobs.

4. 6.6m Long Stroke – Save Labor & Speed Up Work

6.6m single feeding length reduces drill pipe changes by half. Less manual work, fewer interruptions and faster drilling cycles help you finish projects sooner and take more orders.

5. Full-Terrain Mobility – Access Any Job Site Easily

1.7m high leg and 30° climbing crawler chassis allow quick setup and stable operation on slopes, mud and rocky ground. Self-propelled design saves transport cost and time.

Get a Quote

After-sale Service

Comprehensive Quality Guarantee:
We offer a 1-year warranty post-installation or 18 months after shipment (whichever comes first), ensuring reliable performance and your peace of mind.
24/7 Customer Support:
Our dedicated team provides 24/7 support, guaranteeing to resolve all technical issues within 24 hours for minimal downtime and smooth operations.
Regular Follow-Up and Maintenance Advice:
We perform regular check-ins via phone or remote monitoring to proactively maintain your machinery, ensuring long-term safety, efficiency, and reliability.
End-to-End Logistics Support:
We handle customs clearance, shipping, insurance, taxes, and documentation — so you can focus on business while we manage logistics smoothly.
