Drilling depth: 800m
Drilling diameter: 140-400mm
Main motor power: 153kw
Dominate High-End Projects | Maximize Profit & Uptime | Built for Ultra-Deep Success

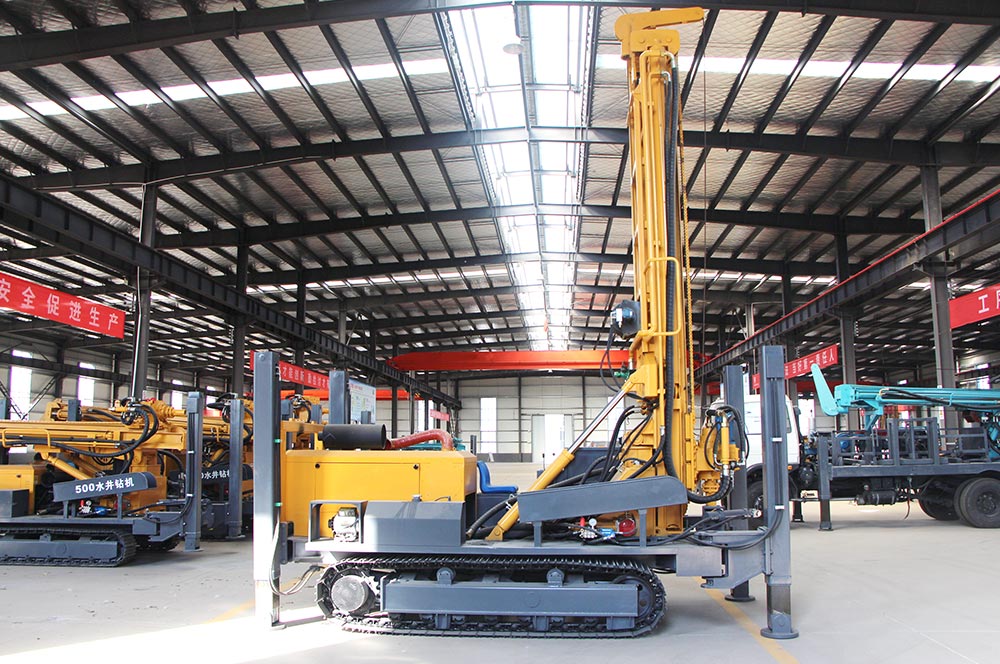

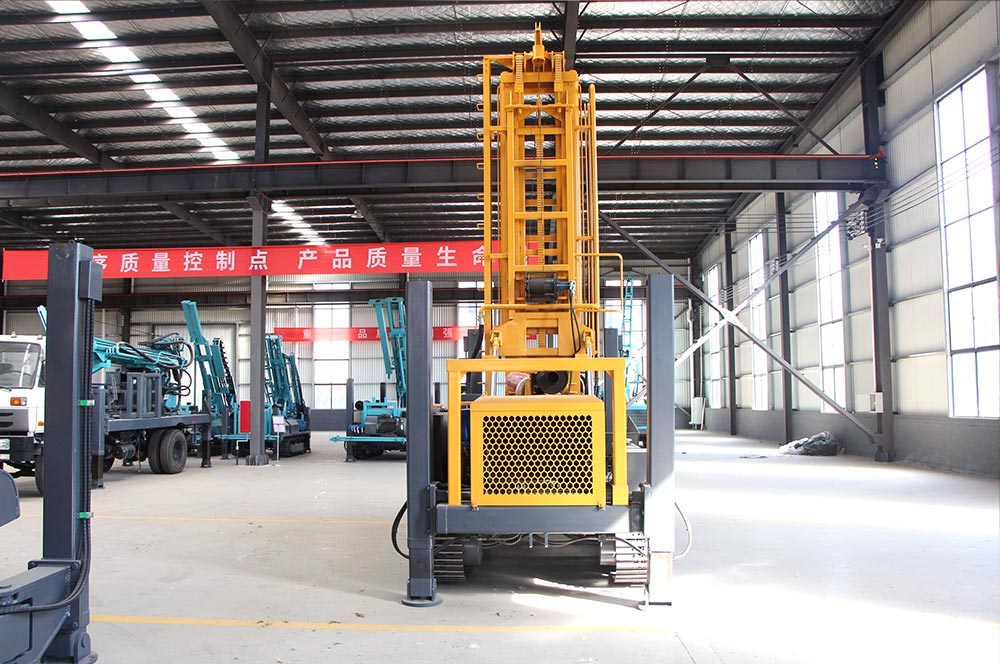

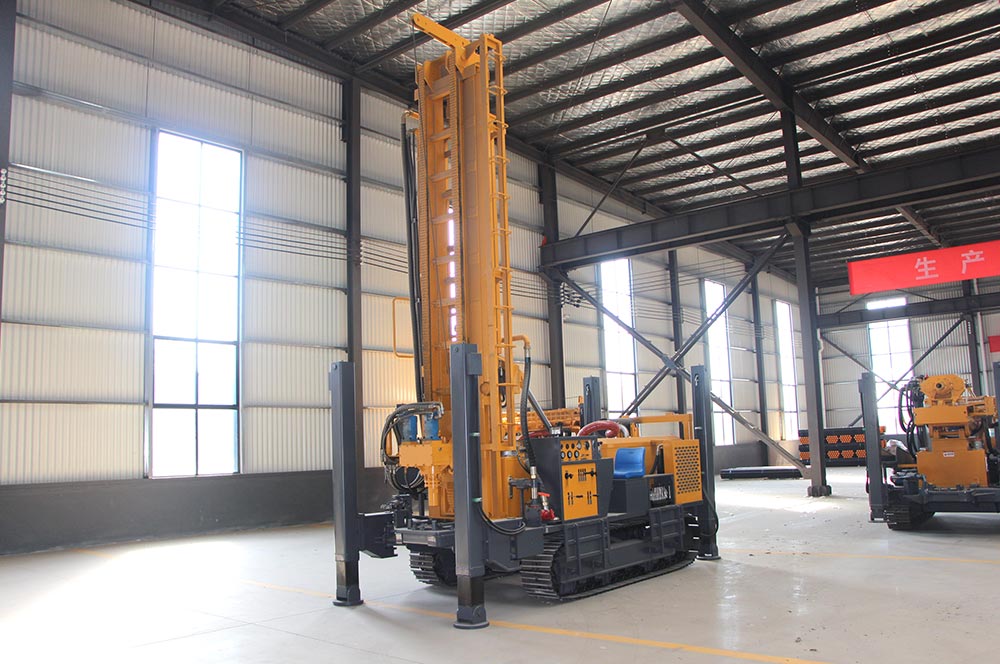

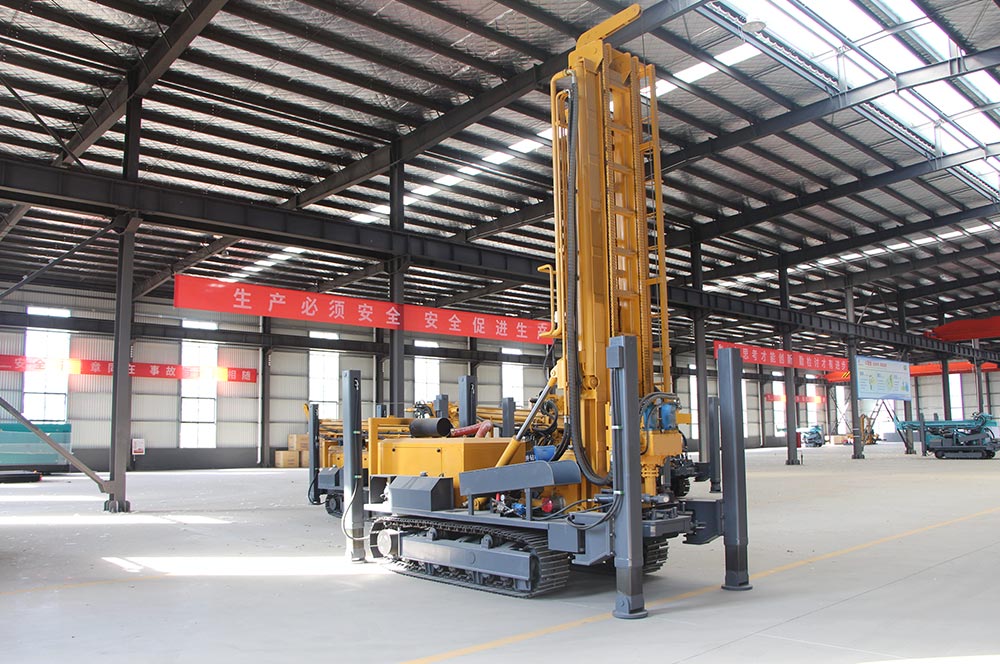

The JTQZ-800 is engineered for elite-level drilling success. It delivers reliable ultra-deep performance, extreme rock adaptability, and industry-leading stability for high-value geothermal, hydrological, industrial, and municipal water projects. With superior power, lifting capacity, and efficiency, this rig lets you take on premium jobs, reduce downtime risks, and achieve faster returns on your investment.
| Model | JTQZ-800 |
| Weight | 13 t |
| Drill Hole Diameter | 140-400 mm |
| Drill Hole Depth | 800 m |
| Single Push Length | 6.6 m |
| Travel Speed | 2.5 km/h |
| Climbing Ability | 30° |
| Engine Power | 153 kW |
| Working Air Pressure | 1.7-3.5 MPa |
| Air Consumption | 17-42 m³/min |
| Rotation Speed | 45-140 rpm |
| High Leg Stroke | 1.7 m |
| Drill Pipe Diameter | 102/108/114 mm |
| Drill Pipe Length | 1.5 m / 2.0 m / 3.0 m / 6.0 m |
| Rig Lifting Force | 30 t |
| Rapid Rise Speed | 20 m/min |
Built to dominate high-value geothermal, industrial, and municipal deep-well jobs that ordinary rigs cannot handle.
Industry-leading lifting power drastically reduces pipe-stuck risks, breakdowns, and expensive on-site delays.
Long-stroke design reduces pipe handling, speeds up cycles, and lowers daily operating expenses.
Full-terrain crawler chassis works on slopes, mud, and remote terrain — no extra trailers required.
Heavy-duty power and structure deliver stable performance for years of high-profit drilling.
Contact us today for factory direct pricing, full configuration support, and a custom solution designed to grow your drilling business.
Comprehensive Quality Guarantee:
24/7 Customer Support:
Regular Follow-Up and Maintenance Advice:
End-to-End Logistics Support:Please fill out the form below according to your needs, and our product specialist will contact you within one day.
