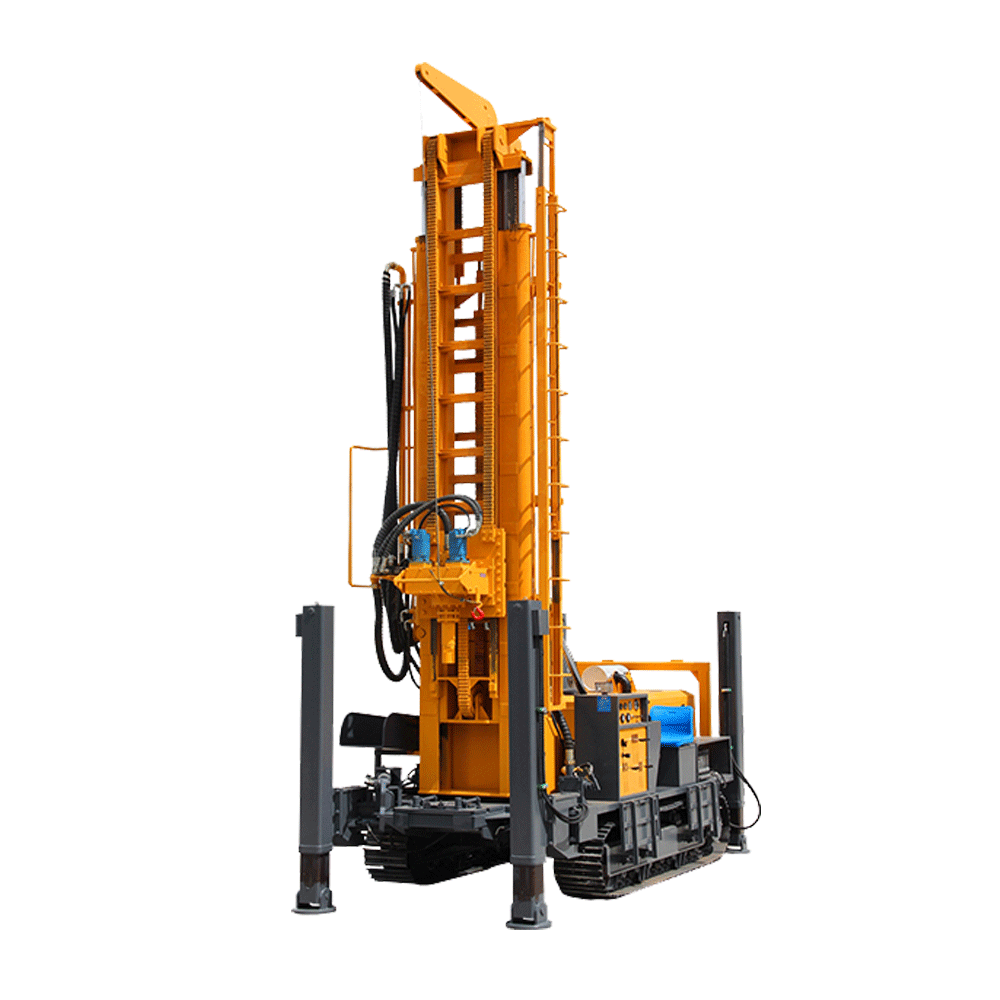

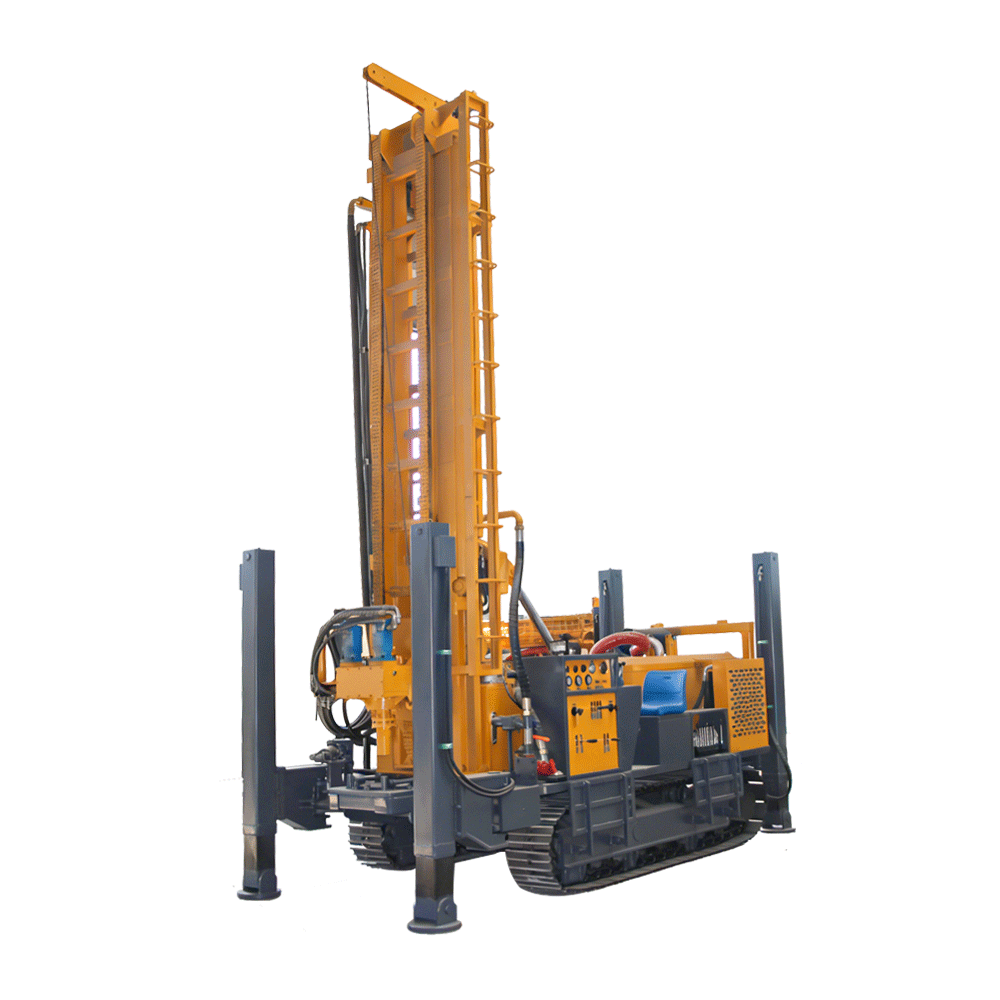

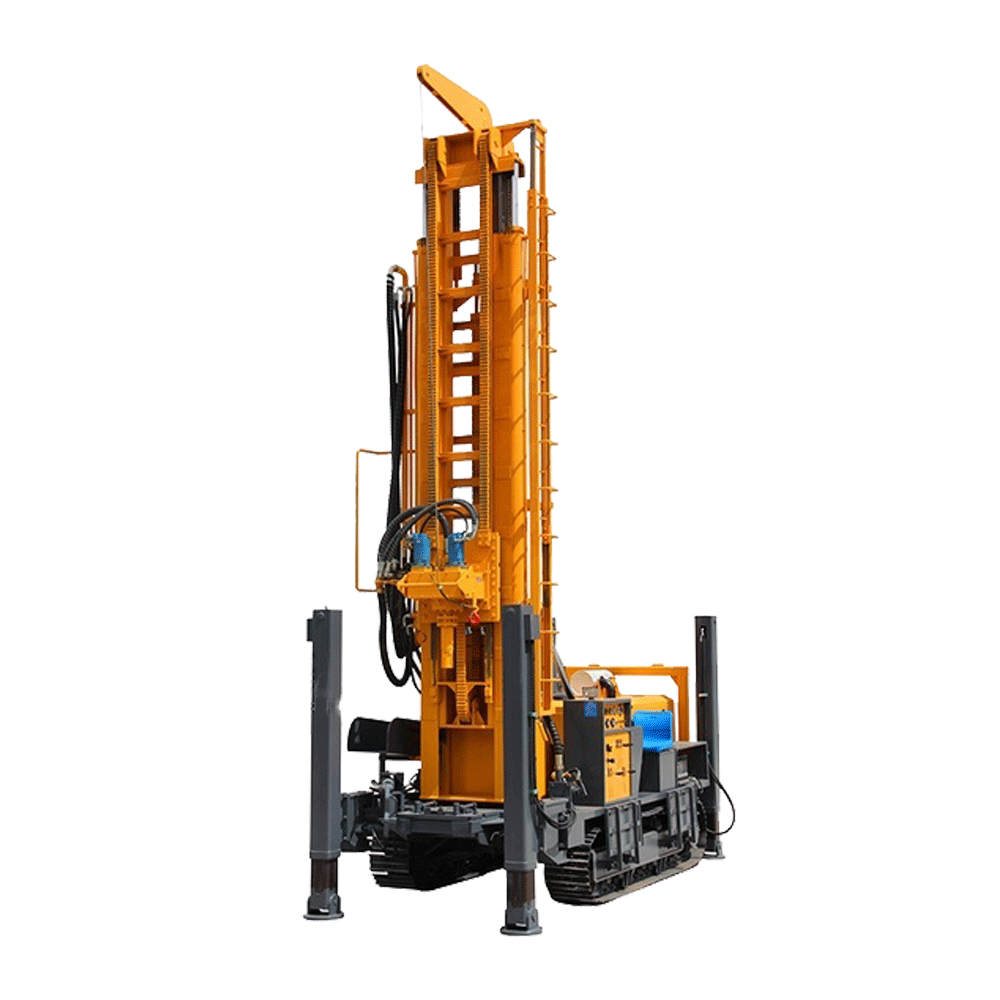

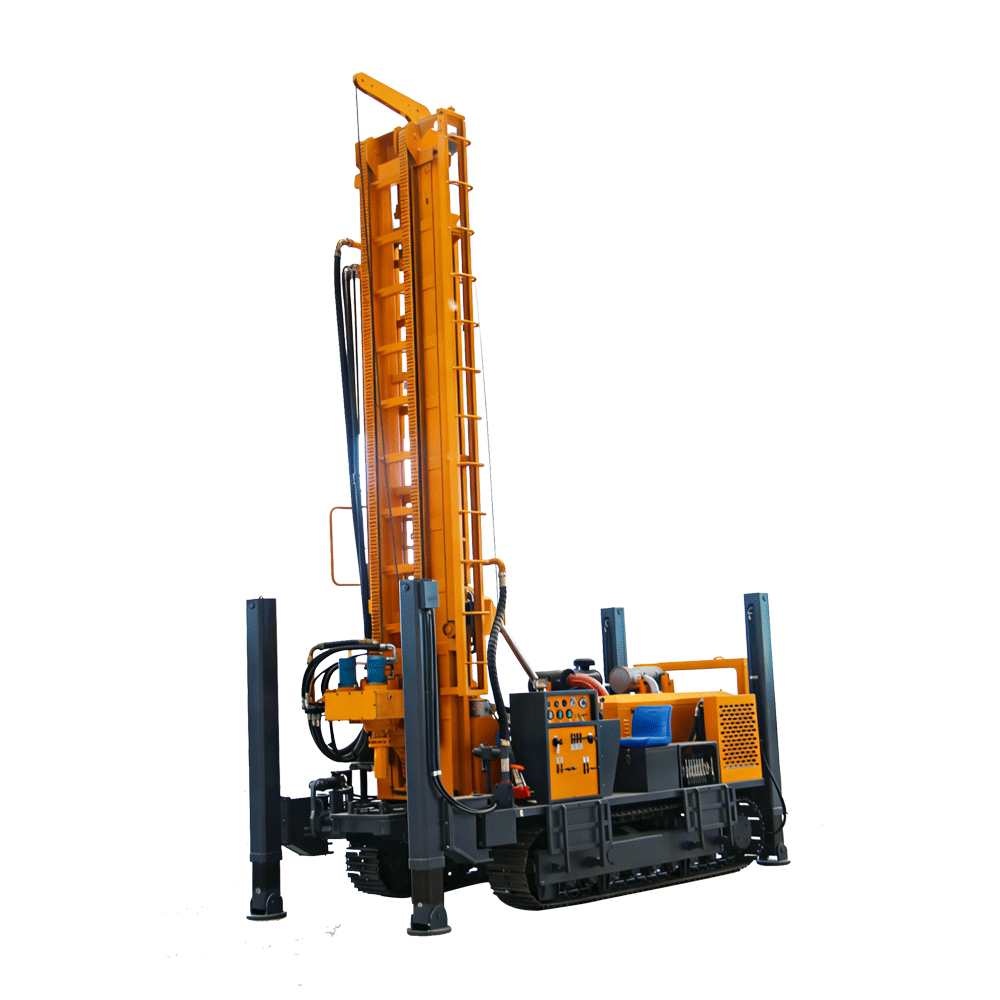

JTQZ-160 Water Well Drill Rig

160m Pneumatic Crawler Water Well Drilling Rig | 73kW Yuchai Engine | Stable Rural & Farm Drilling

Overview

JTQZ-160 is a professional pneumatic crawler water well drill rig, specially designed for medium-shallow well drilling under complex geology. It supports 160m drilling depth with matched bore diameter, equipped with reliable 73kW Yuchai engine. Adopting rubber crawler chassis, it features flexible moving capability and strong slope adaptability, ideal for rural water supply, farm irrigation and small industrial well drilling projects.

Basic Specifications

Core Value Advantages

1. 160m Standard Drilling Capacity

Supports 160m stable drilling depth and 138–203mm bore diameter, fully meeting conventional rural domestic water wells and farm irrigation well construction demands.

2. Reliable Yuchai Power System

73kW original Yuchai diesel engine provides strong and steady power output, adapting to sand layer, gravel and soft rock formations for continuous efficient drilling.

3. 12t Powerful Lifting Performance

12-ton strong lifting capacity easily handles deep drill pipe assembly and disassembly, effectively avoiding pipe sticking failure and improving construction safety.

4. 2m One-Time Drilling Stroke

2m single feeding length reduces frequent drill rod replacement steps, saves auxiliary time and greatly improves overall drilling efficiency.

5. Crawler Chassis Strong Site Adaptability

Rubber crawler design realizes flexible field transfer, 2.5km/h walking speed and 30° climbing ability, freely passing mountain roads, farmland and rugged remote construction sites.

Get a Quote

Factory direct supply with complete technical parameters and customized configuration support. Contact us for detailed quotation and project-matching drilling solution.
