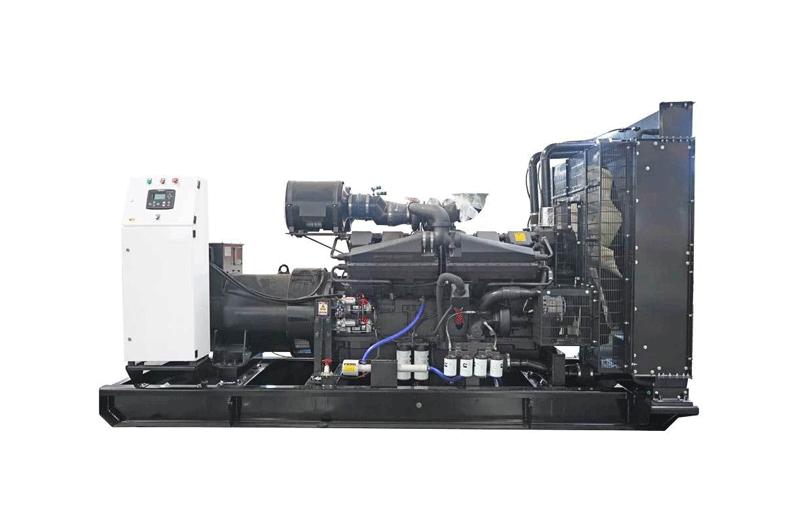

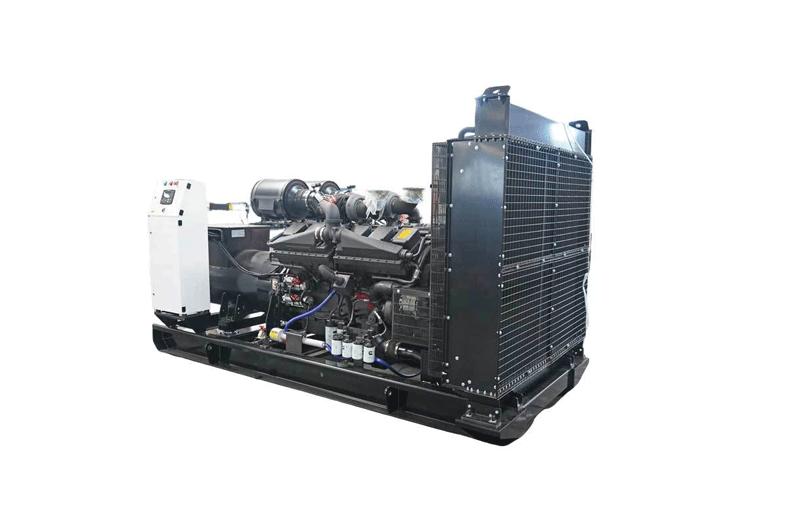

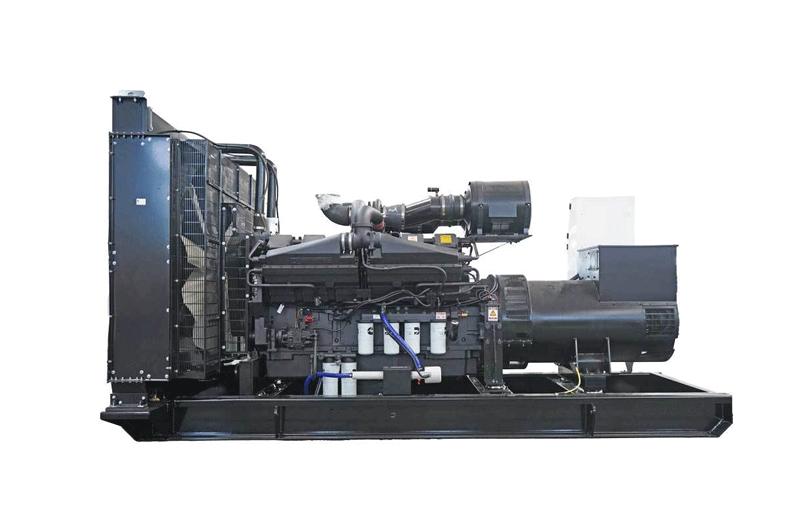

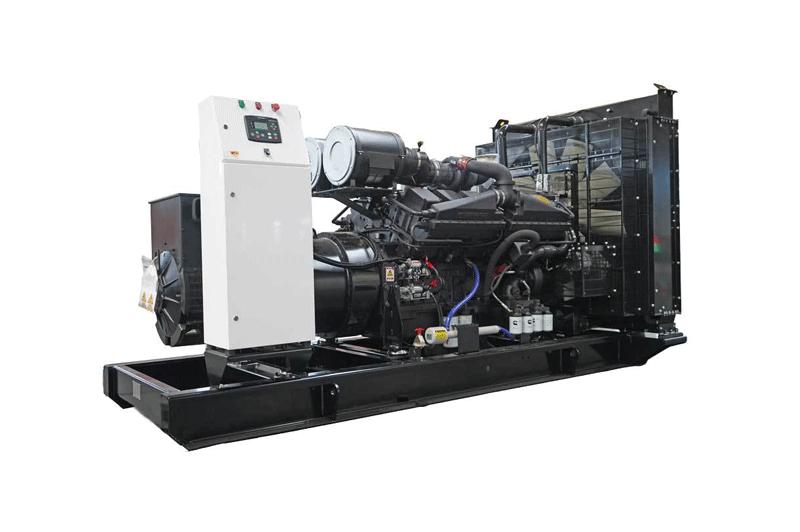

JT-800KW Cummins Industrial Generator
800kW Prime Power | High-Performance Energy for Mining, Data Centers & Industrial Fleets
- Engine: Genuine Cummins KTA38-G5 12-Cylinder V-Form Turbo
- Certifications: ISO9001, CE, SONCAP, PVoC, NRCS, SIRIM
- Reliability: 500-Hour Industrial Maintenance Cycle & G3 Transient Response
Product Overview
The JT-800KW is built for demanding industrial environments where downtime is not an option. Powered by the proven Cummins KTA38-G5 V12 engine, this 1000kVA generator offers high-density power in a simplified, single-unit package. By consolidating power output, it eliminates the need for complex synchronization controllers associated with paralleled smaller units, significantly reducing maintenance complexity and failure risks. It is the premier choice for large-scale mining operations and mission-critical data centers requiring robust performance and predictable, low-maintenance scheduling.
Technical Specifications
| Parameter | Specification (JT-800KW) |
|---|---|
| Prime / Standby Power | 800 kW / 880 kW (1000/1100 kVA) |
| Rated Current | 1,620 A |
| Engine Model | Cummins KTA38-G5 (12-Cyl V-Form Turbo, 37.8L) |
| Peak Torque | 2,688 N·m @ 1500 RPM |
| Alternator | Brushless, Self-exciting, H-Class Insulation |
| THD / Power Factor | <5% / 0.8 lagging |
| Fuel Consumption | 198–206 g/kW·h (100% Load) |
| Maintenance Interval | 500 Working Hours |
| Dimensions / Weight | 5,500 × 2,100 × 2,500 mm / 9.0 t |
| Certifications | ISO, CE, SONCAP, PVoC, NRCS, SIRIM |
Engineering Advantages
1. Consolidation of Power Assets
The JT-800KW replaces the need for 3-4 smaller units. This consolidation reduces foundation footprints, simplifies fuel distribution, and removes vulnerable synchronization control modules, ensuring superior system reliability.
2. V12 Efficiency & Part Commonality
Utilizing the KTA38-G5 V12 platform offers optimized fuel efficiency and high parts commonality with the 500-600kW Cummins range. This reduces inventory overhead for industrial fleets managing mixed-power operations.
3. Shift-Matched Fuel Logistics
Engineered for mission-critical mining realities, the fuel system is calibrated for extended runtimes. This minimizes the logistical bottleneck of mid-shift refueling, ensuring continuous uptime during intense operational cycles.
4. ISO 8528-5 G3 Transient Response
The KTA38-G5 provides industry-leading transient response. It maintains stable voltage during heavy motor-start surges, protecting downstream VFDs and industrial control systems from voltage-dip-induced trips.
5. 500-Hour Availability Calculation
Designed for high-uptime environments, our 500-hour maintenance cycle translates into fewer scheduled service interruptions per year, directly improving the Overall Equipment Availability (OEA) of your site.
Commercial Terms & Tender Compliance
- Factory Price Guarantee: Direct supply with no middleman markups.
- Tender Compliance: Full international documentation (ISO, CE, SONCAP, PVoC) for mining and infrastructure projects.
- Logistics: Global sea freight coordination and customs documentation support.
- Response: Technical specs and commercial quotes issued within 24 business hours.
