JT-200KW Cummins Industrial Generator
200kW Prime Power | Engineered for Telecom & Commercial Infrastructure
- Certifications: ISO9001, CE, SONCAP, PVoC, NRCS, SIRIM, SNI, TISI
- Warranty: 12-Month Global Factory Warranty
- Support: 24/7 Technical Consultation & Global Logistics
Product Overview

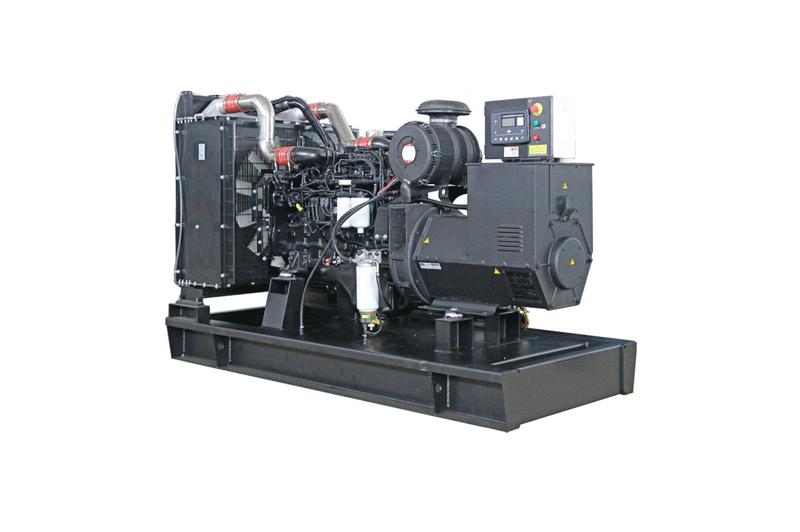

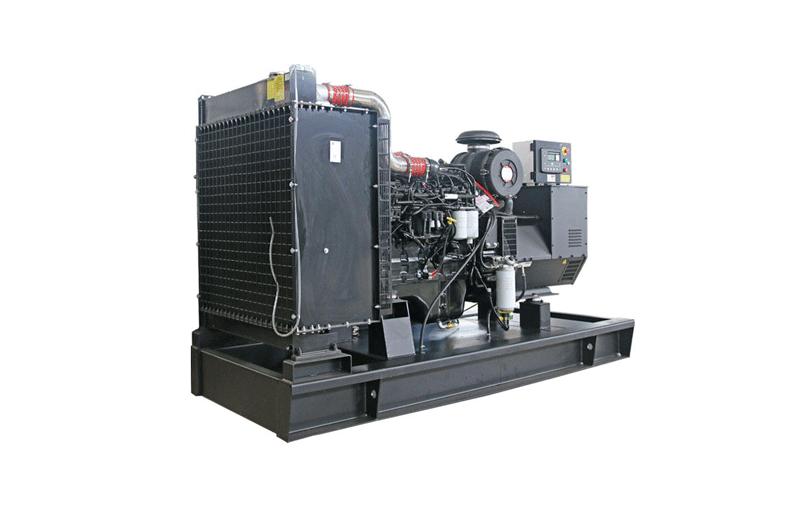

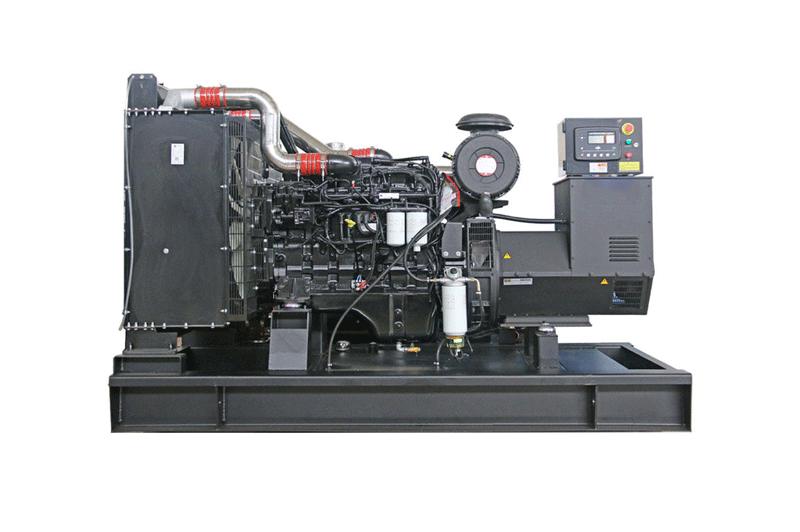

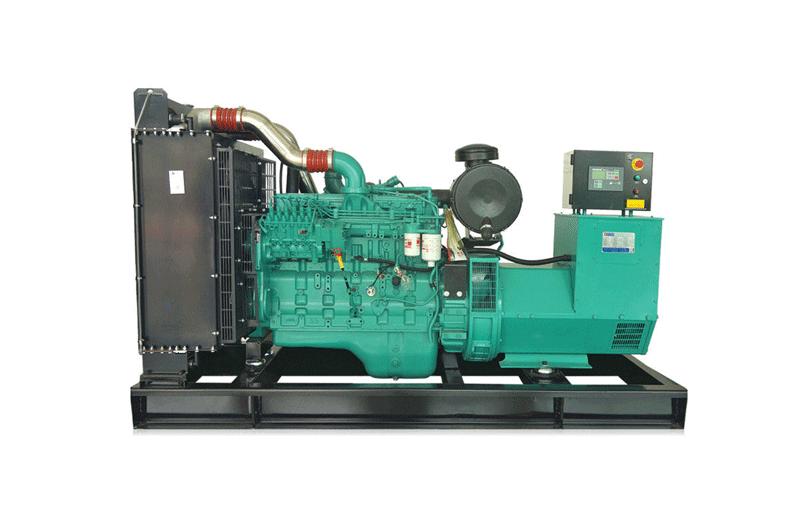

The JT-200KW is built on the proven Cummins NTA855-GA inline-6 platform. Designed for high-reliability environments—such as telecom base stations, retail complexes, and data centers—this generator features standard ATS integration and a 350L fuel tank for 24-hour continuous autonomy. It combines low-maintenance operation with the rugged durability required for critical power applications.
Technical Specifications
| Category | Specification |
|---|---|
| Prime Power | 200 kW / 250 kVA |
| Standby Power | 220 kW / 275 kVA |
| Voltage / Frequency | 400/230V · 50 Hz |
| Rated Current | 360 A |
| Engine Model | Cummins NTA855-GA (18.9L, 6-Cyl) |
| Aspiration | Turbocharged |
| Compression Ratio | 15.5:1 |
| Peak Torque | 1,630 N·m @ 1500 RPM |
| Fuel Consumption | 172–212 g/kW·h (Load dependent) |
| Maintenance Interval | 500 Working Hours |
| Fuel Tank Runtime | ~24 Hours @ 50% Load (350 L) |
| Noise Level | 78–80 dB(A) @ 1m |
| Dimensions (L×W×H) | 4,200 × 1,700 × 2,200 mm |
| Dry Weight | 4.8 t |
| Alternator Protection | IP23 / H-Class Insulation |
Why Choose JT-200KW?
1. Standard ATS Integration
For telecom and commercial sites, manual switching is a risk. We include ATS compatibility as standard, ensuring millisecond-level transition during grid failure.
2. 24-Hour Backup Autonomy
The integrated 350L fuel tank is specifically sized for extended outages, matching the required backup duration for telecom hubs and retail complexes.
3. Low-Cost Maintenance
The NTA855-GA engine and 500-hour maintenance cycle minimize downtime and reduce the total cost of ownership (TCO) over the life of the unit.
4. Intelligent Remote Monitoring
Equipped with dry contacts and remote alarm transmission capabilities, this unit integrates seamlessly with your existing SCADA or building management systems.
Get Your Custom Technical Proposal
Factory-direct pricing, complete datasheet, and international shipping options available. We respond to all inquiries within 24 business hours.
