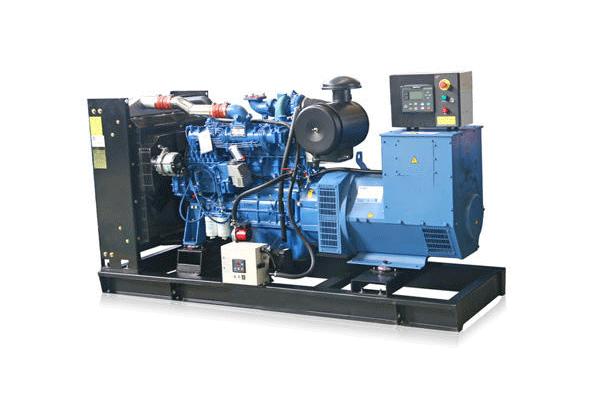

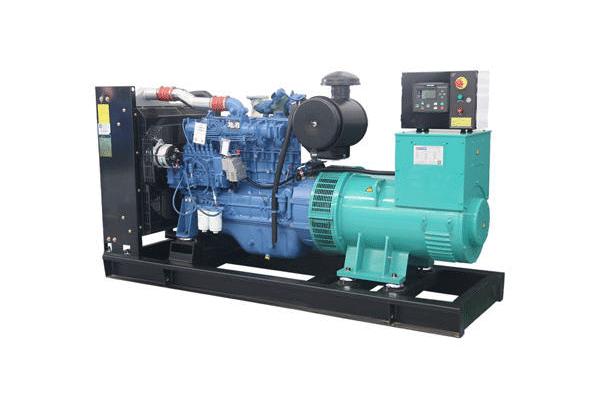

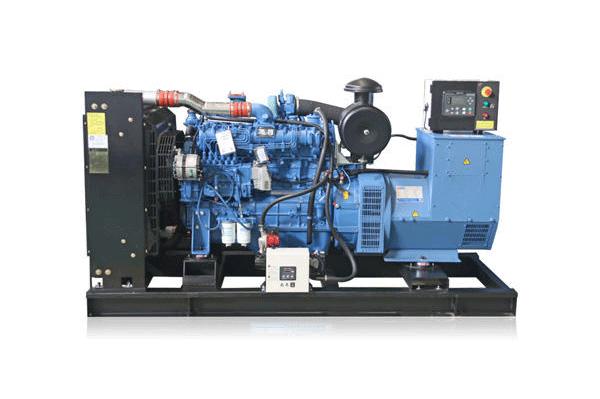

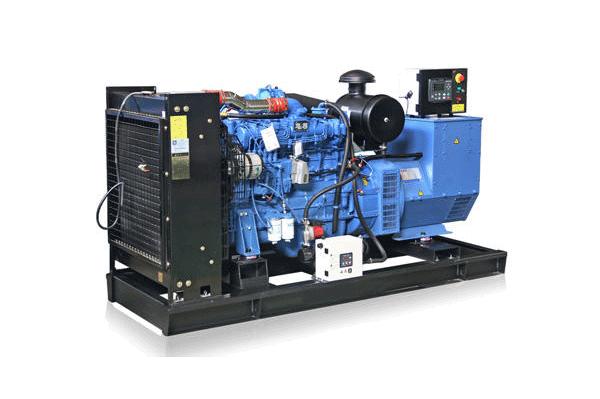

JT-150KW Yuchai Industrial Generator
150kW Prime Power | Cost-Effective & Reliable Energy for Small-Scale Industrial & Community Needs
- Engine: Yuchai YC6A245-D30 6-Cylinder
- Output: 150kW Prime / 165kW Standby
- Noise Level: Ultra-Quiet 70-72 dB(A)
- Certifications: Global Standard Compliance (ISO, CE, SONCAP, etc.)
Product Overview
The JT-150KW is an ideal power solution for budget-conscious projects, powered by the mature and robust Yuchai YC6A245-D30 engine. Perfectly sized for small workshops, rural construction, clinics, and local community facilities, this compact generator provides stable performance with low operating costs. Its combination of high environmental adaptability, ease of transport, and whisper-quiet operation makes it the premier choice for small-to-medium scale applications in emerging markets.
Technical Specifications
| Category | Specification |
|---|---|
| Model | JT-150KW |
| Prime Power | 150 kW / 187.5 kVA |
| Standby Power | 165 kW / 206.25 kVA |
| Voltage | 400/230 V |
| Rated Current | 270 A |
| Frequency | 50 Hz |
| Engine Model | Genuine Yuchai YC6A245-D30, 6-Cylinder In-Line Turbocharged |
| Displacement | 7.255 L |
| Bore × Stroke | 108 mm × 132 mm |
| Compression Ratio | 17.5:1 |
| Cycle Type | 4-Cycle Diesel |
| Engine Rated Speed | 1500 RPM |
| Peak Torque @1500RPM | 980 N·m |
| Cooling System | Water-Cooled |
| Engine Oil Capacity | 20 L |
| Start Motor Voltage | 24V DC |
| Alternator Brand & Type | Stamford/Marathon, Brushless, Self-exciting, H-Class Insulation, 3-Phase |
| Phase & Connection | 3-Phase 4-Wire |
| Power Factor | 0.8 (lagging) |
| Insulation Class | Class H |
| Protection Grade | IP21 |
| Total Harmonic Distortion (THD) | <5% |
| Fuel Consumption (100% Full Load) | 208-216 g/kW·h |
| Fuel Tank Capacity | 420 L / ≈15-hr @ 75% Load |
| Scheduled Maintenance Interval | 500 Working Hours |
| Noise Level | 70-72 dB(A) @ 1 Meter |
| Max Operating Altitude | ≤ 1000 m |
| Max Parallel Units | Up to 8 Units (IEC 8528-5) |
| ATS Compatibility | Yes |
| Transport Dimensions | 4400 × 1900 × 2300 mm |
| Overall Weight | 3.8 t |
| Certifications | ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI |
| Lead Time | 45-50 Working Days + 40-50 Days Ocean Freight |
| Payment Term | 30% Advance, 70% Before Shipment |
Core Advantages
1. Optimal Price-to-Performance Ratio
The 150kW capacity strikes the perfect balance for small projects. It provides reliable continuous power without the financial burden of over-sized equipment, making it the most cost-effective choice for clinics, workshops, and rural services.
2. Proven Yuchai A-Series Reliability
The A-series engine is engineered for longevity in challenging climates. Its superior heat dissipation and robust structure ensure consistent performance in high-temperature and humid regions, minimizing downtime where professional service is scarce.
3. 15-Hour Full-Shift Runtime
The 420L integrated tank delivers 15 hours of operation at 75% load, allowing your team to complete a full working day without the hassle of refueling—a key benefit for remote off-grid mining and construction sites.
4. Whisper-Quiet Operation
With noise levels as low as 70-72 dB(A), this unit is "neighbor-friendly." It can be safely deployed near clinics, schools, and residential communities without violating noise ordinances or causing disturbances.
5. High Portability
Weighing only 3.8 tons and featuring a compact design, the JT-150KW can be easily transported using standard regional logistics vehicles, significantly lowering your site mobilization and setup costs.
