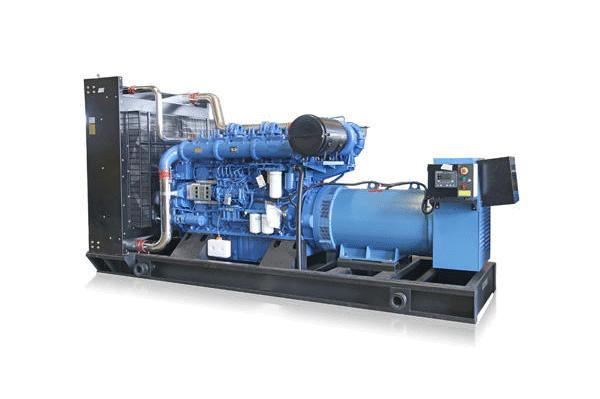

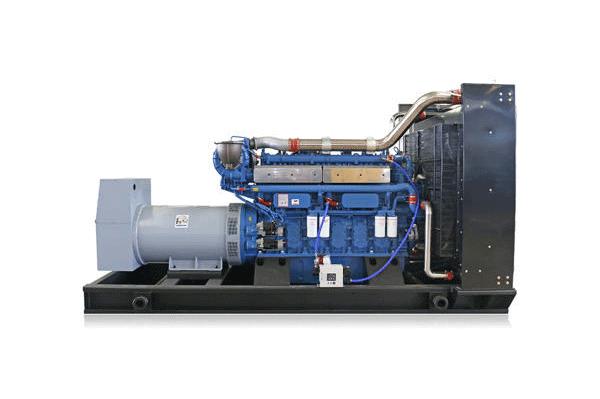

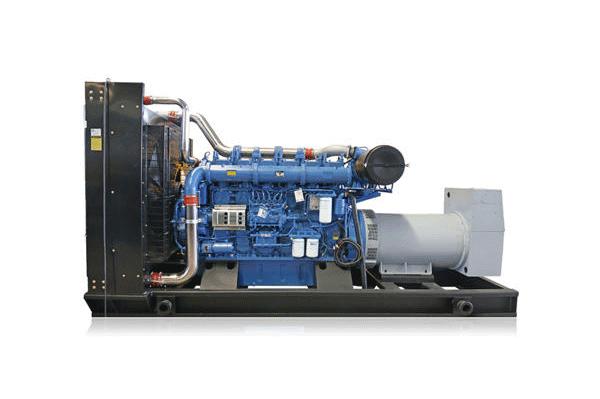

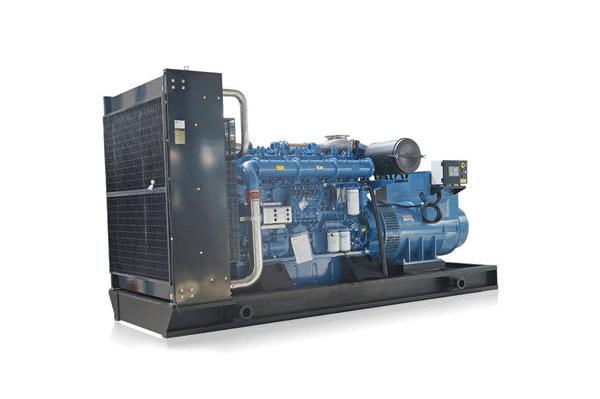

JT-800KW Yuchai Industrial Generator
800kW Prime Power | Robust Energy for Construction, Mining & Large-Scale Manufacturing
- Engine: Yuchai YC6C1320-D31 6-Cylinder In-Line Turbocharged
- Certifications: ISO9001, CE, SONCAP, PVoC, NRCS, SIRIM, SNI, TISI
- Scalability: Parallel Capability up to 8 Units
Product Overview
The JT-800KW is a high-performance industrial generator built on the reliable Yuchai YC6C1320-D31 platform. Delivering 800kW of continuous prime power, it is engineered for the rigorous demands of construction sites, mining auxiliary stations, and large-scale manufacturing facilities. With a 39.584L displacement and 5800 N·m of peak torque, this unit provides the consistent, heavy-load stability required for 24/7 operations across global markets.
Technical Specifications
| Category | Specification |
|---|---|
| Model | JT-800KW |
| Prime Power | 800 kW / 1000 kVA |
| Standby Power | 880 kW / 1100 kVA |
| Voltage | 400/230 V |
| Rated Current | 1440 A |
| Frequency | 50 Hz |
| Engine Model | Yuchai YC6C1320-D31, 6-Cylinder In-Line Turbocharged |
| Displacement | 39.584 L |
| Bore × Stroke | 170 mm × 230 mm |
| Compression Ratio | 14.5:1 |
| Cycle Type | 4-Cycle Diesel |
| Engine Rated Speed | 1500 RPM |
| Peak Torque @1500RPM | 5800 N·m |
| Cooling System | Water-Cooled |
| Engine Oil Capacity | 110 L |
| Start Motor Voltage | 24V DC |
| Alternator Brand & Type | Stamford/Marathon, Brushless, Self-exciting, H-Class Insulation, 3-Phase |
| Phase & Connection | 3-Phase 4-Wire |
| Power Factor | 0.8 (lagging) |
| Insulation Class | Class H |
| Protection Grade | IP21 |
| Total Harmonic Distortion (THD) | <5% |
| Fuel Consumption (100% Full Load) | 218-226 g/kW·h |
| Fuel Tank Capacity | 1500 L / ≈13-hr @ 75% Load |
| Scheduled Maintenance Interval | 500 Working Hours |
| Noise Level | 80-82 dB(A) @ 1 Meter |
| Max Operating Altitude | ≤ 1000 m |
| Max Parallel Units | Up to 8 Units (IEC 8528-5) |
| ATS Compatibility | Yes |
| Transport Dimensions | 4800 × 2200 × 2600 mm |
| Overall Weight | 9.5 t |
| Certifications | ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI |
| Lead Time | 45-50 Working Days + 40-50 Days Ocean Freight |
| Payment Term | 30% Advance, 70% Before Shipment |
Core Advantages
1. 880kW Overload Capacity
Featuring a 10% overload capability for one hour, the JT-800KW easily manages the high inrush currents typical of crushers, mixers, and large motor starts on construction sites, ensuring no power interruptions during peak demand.
2. 5800 N·m High-Torque Resistance
Superior torque reserve minimizes voltage dips during frequent load switching. This protects sensitive onsite electronics and prevents protection relay false-tripping in mining and heavy industrial applications.
3. 13-Hour Continuous Runtime
The 1500L integral fuel tank ensures extended operation. For off-grid mining sites with limited fuel logistics, this reduces the frequency of delivery and simplifies fuel procurement cycles.
4. Precise Power Quality Control
With THD<5%, the Stamford/Marathon alternator provides clean, stable power essential for PLC systems, banking servers, and precision manufacturing equipment, shielding them from harmonic interference.
5. 500-Hour Maintenance Interval
Extended maintenance cycles directly translate to lower operational costs and reduced downtime, a critical advantage for time-sensitive construction and mining projects operating on tight deadlines.
6. SCADA-Ready Connectivity
Integrated RS485 interfaces allow for seamless SCADA/BMS integration, enabling remote, centralized monitoring for multi-point distributed industrial sites without the need for on-site technicians.
