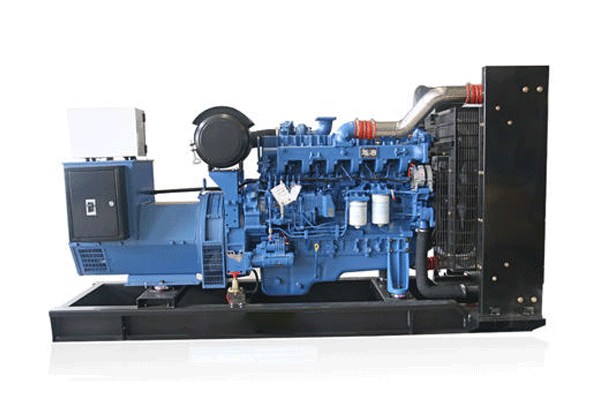

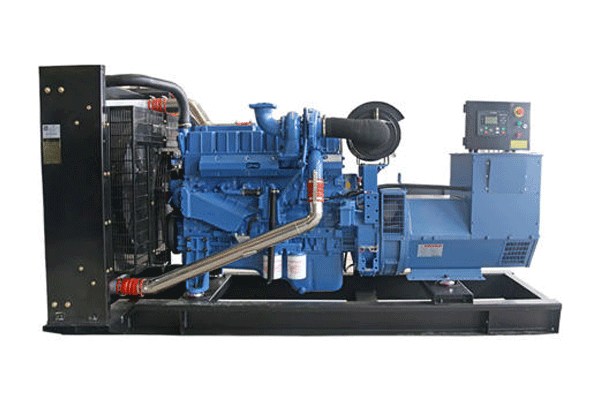

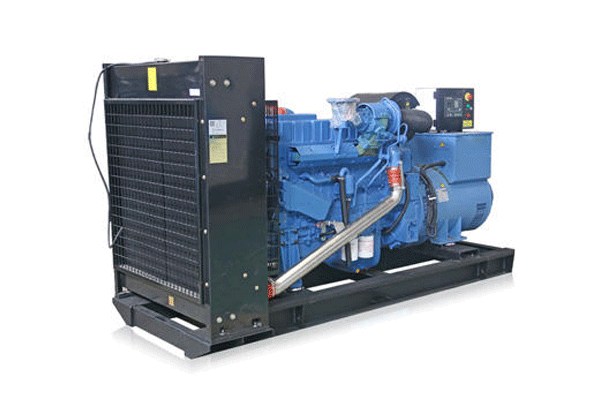

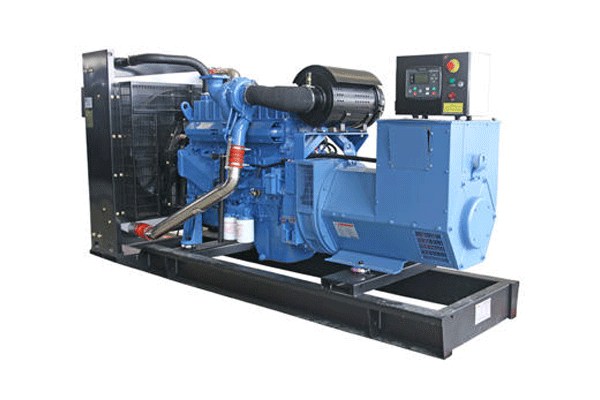

JT-200KW Yuchai Industrial Generator
200kW Prime Power | Flexible & Efficient Power for Small-to-Medium Industrial Sites
- Engine: Yuchai YC6MK350L-D20 6-Cylinder
- Output: 200kW Prime / 220kW Standby
- Portability: Compact 4.6t Weight
- Certifications: Global Standard Compliance (ISO, CE, SONCAP, etc.)
Product Overview
The JT-200KW is a highly mobile and cost-effective industrial generator powered by the proven Yuchai YC6MK350L-D20 engine. Engineered for small factories, urban construction teams, and mining micro-auxiliary stations, this model combines compact design with excellent load stability. With its low noise profile and 500-hour maintenance cycle, it serves as the perfect solution for projects requiring efficient, continuous power in space-constrained or noise-sensitive environments.
Technical Specifications
| Category | Specification |
|---|---|
| Model | JT-200KW |
| Prime Power | 200 kW / 250 kVA |
| Standby Power | 220 kW / 275 kVA |
| Voltage | 400/230 V |
| Rated Current | 360 A |
| Frequency | 50 Hz |
| Engine Model | Genuine Yuchai YC6MK350L-D20, 6-Cylinder In-Line Turbocharged |
| Displacement | 10.338 L |
| Bore × Stroke | 119 mm × 154 mm |
| Compression Ratio | 16.5:1 |
| Cycle Type | 4-Cycle Diesel |
| Engine Rated Speed | 1500 RPM |
| Peak Torque @1500RPM | 1260 N·m |
| Cooling System | Water-Cooled |
| Engine Oil Capacity | 26 L |
| Start Motor Voltage | 24V DC |
| Alternator Brand & Type | Stamford/Marathon, Brushless, Self-exciting, H-Class Insulation, 3-Phase |
| Phase & Connection | 3-Phase 4-Wire |
| Power Factor | 0.8 (lagging) |
| Insulation Class | Class H |
| Protection Grade | IP21 |
| Total Harmonic Distortion (THD) | <5% |
| Fuel Consumption (100% Full Load) | 210-218 g/kW·h |
| Fuel Tank Capacity | 550 L / ≈14-hr @ 75% Load |
| Scheduled Maintenance Interval | 500 Working Hours |
| Noise Level | 72-74 dB(A) @ 1 Meter |
| Max Operating Altitude | ≤ 1000 m |
| Max Parallel Units | Up to 8 Units (IEC 8528-5) |
| ATS Compatibility | Yes |
| Transport Dimensions | 4800 × 2000 × 2400 mm |
| Overall Weight | 4.6 t |
| Certifications | ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI |
| Lead Time | 45-50 Working Days + 40-50 Days Ocean Freight |
| Payment Term | 30% Advance, 70% Before Shipment |
Core Advantages
1. Optimized 200kW Prime Power
Tailored for small-scale mixed-load projects, this generator delivers reliable power for small production lines and HVAC systems. It prevents the operational overhead of oversized generators while maintaining full site productivity.
2. Rapid Torque Response
The MK-series engine provides 1260 N·m of peak torque, ensuring stable voltage output even when multiple small machines or pumps start simultaneously—effectively preventing circuit breaker trips in workshop environments.
3. High Mobility & Ease of Transport
Weighing just 4.6 tons with a compact footprint, the JT-200KW is designed for rapid deployment. It can be moved via standard logistics vehicles, saving on heavy-lift equipment costs for dispersed work teams.
4. Urban-Friendly Noise Levels
With noise controlled between 72-74 dB(A), this unit meets strict urban sound regulations. It is ideal for continuous operation near residential areas and commercial offices without disturbing neighbors or triggering complaints.
5. 14-Hour Continuous Shift Support
The 550L fuel tank enables 14 hours of continuous operation at 75% load, perfectly aligning with a standard working shift. This eliminates mid-day downtime and ensures uninterrupted operational performance.
